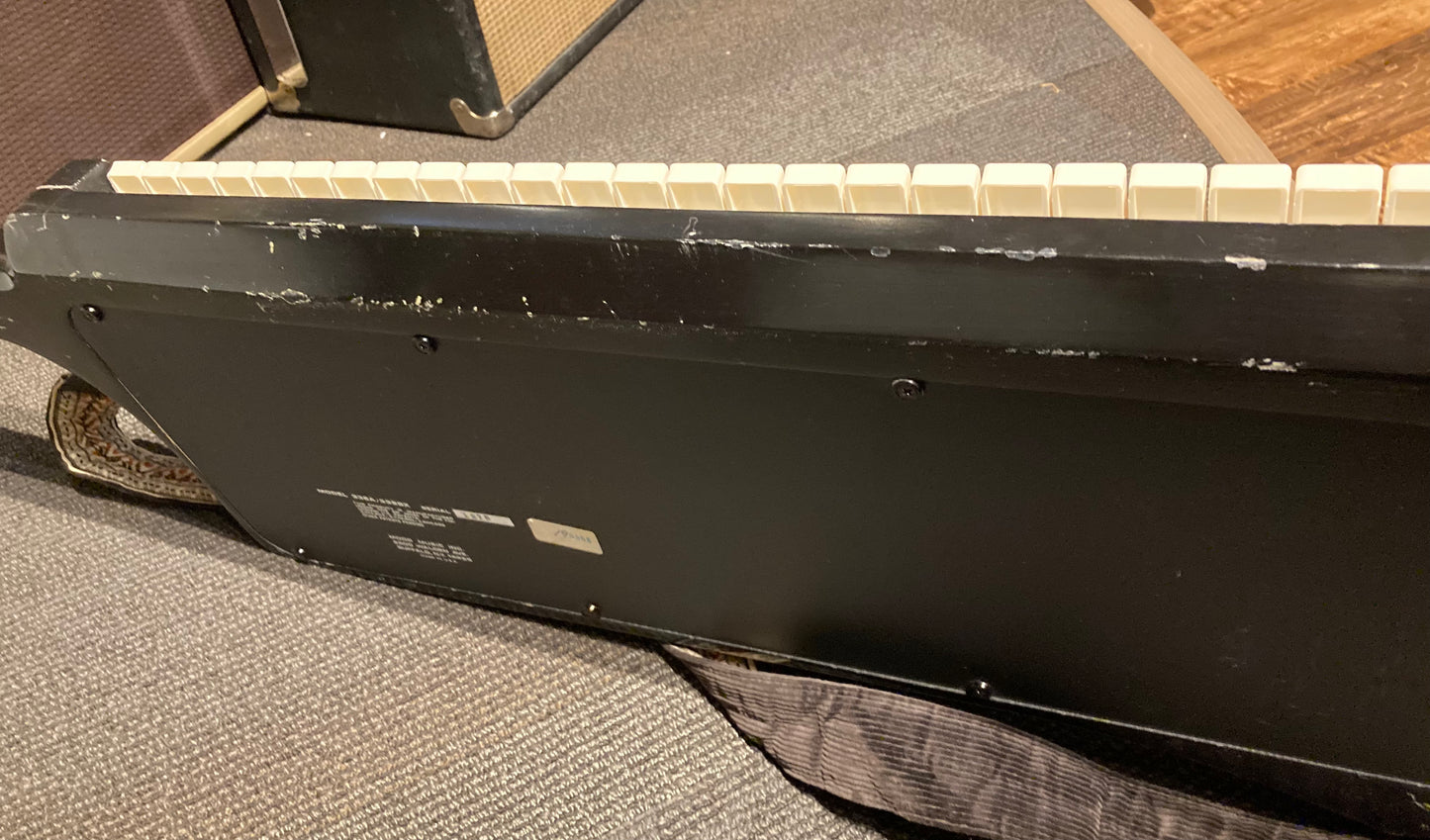

Moog Liberation Keytar Synth (1980-1981)

Moog Liberation Keytar Synth (1980-1981)

Regular price $3,999.95 CAD
Regular price Sale price $3,999.95 CAD
Sale Sold out
Shipping calculated at checkout.

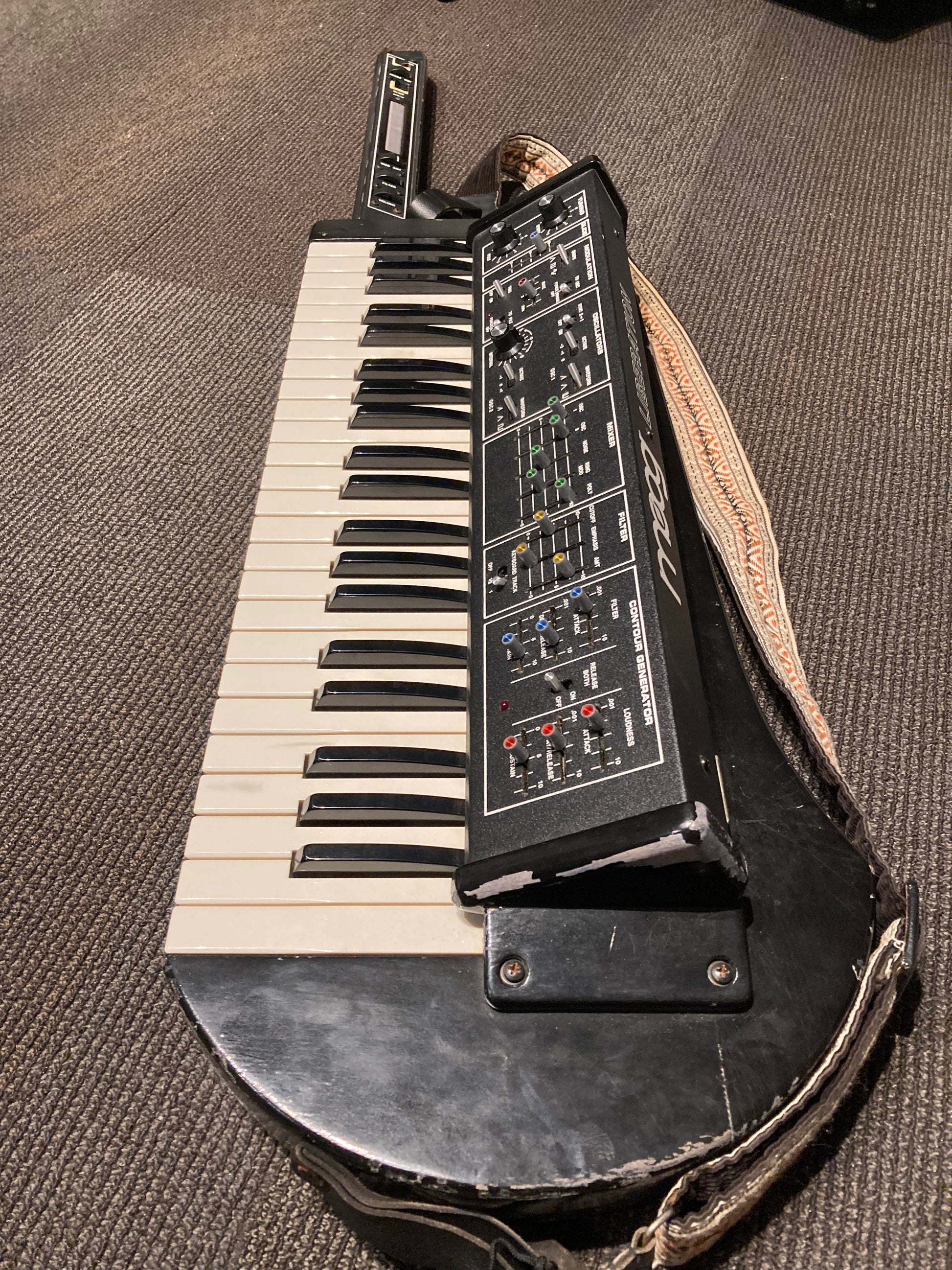

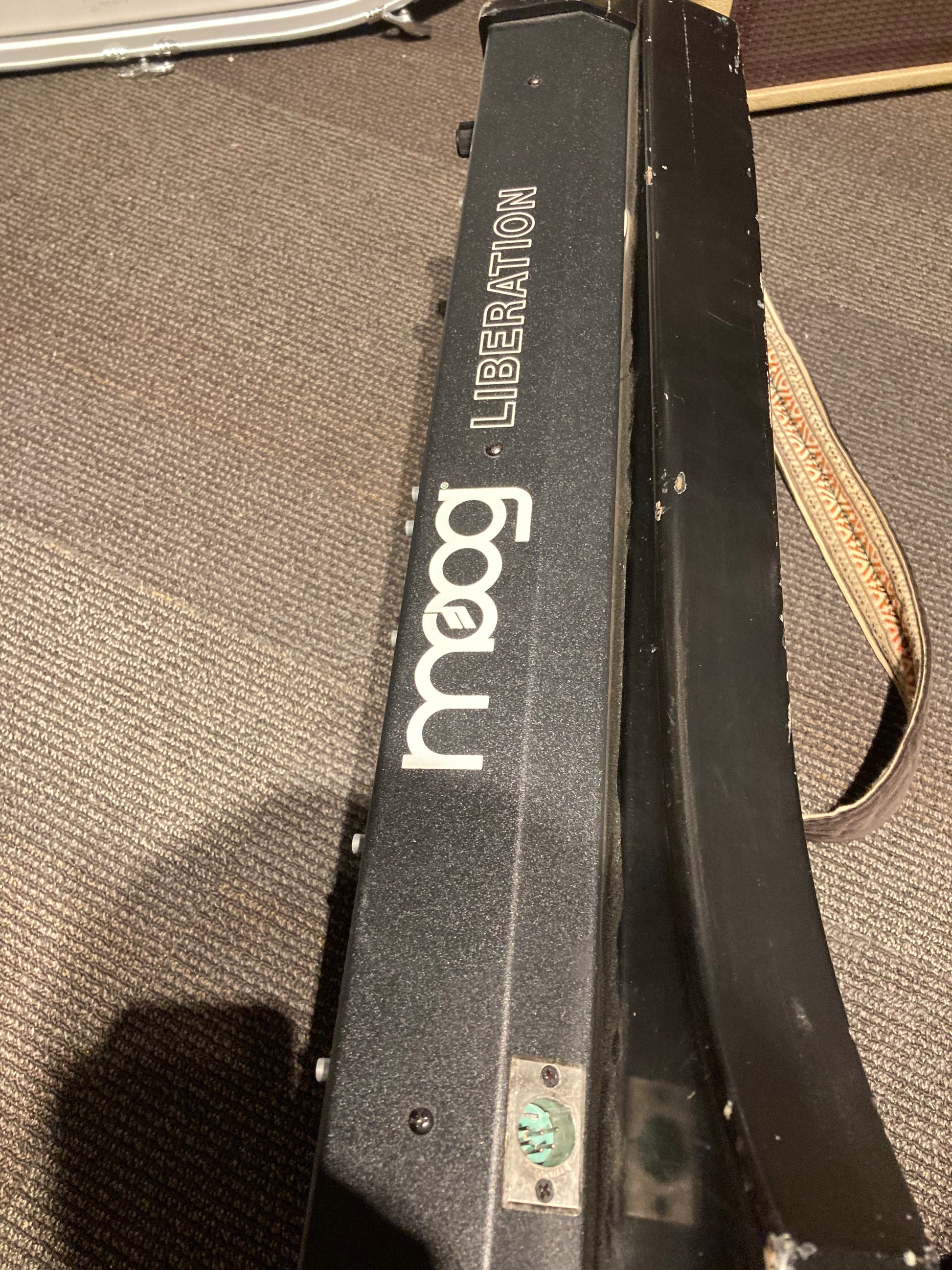

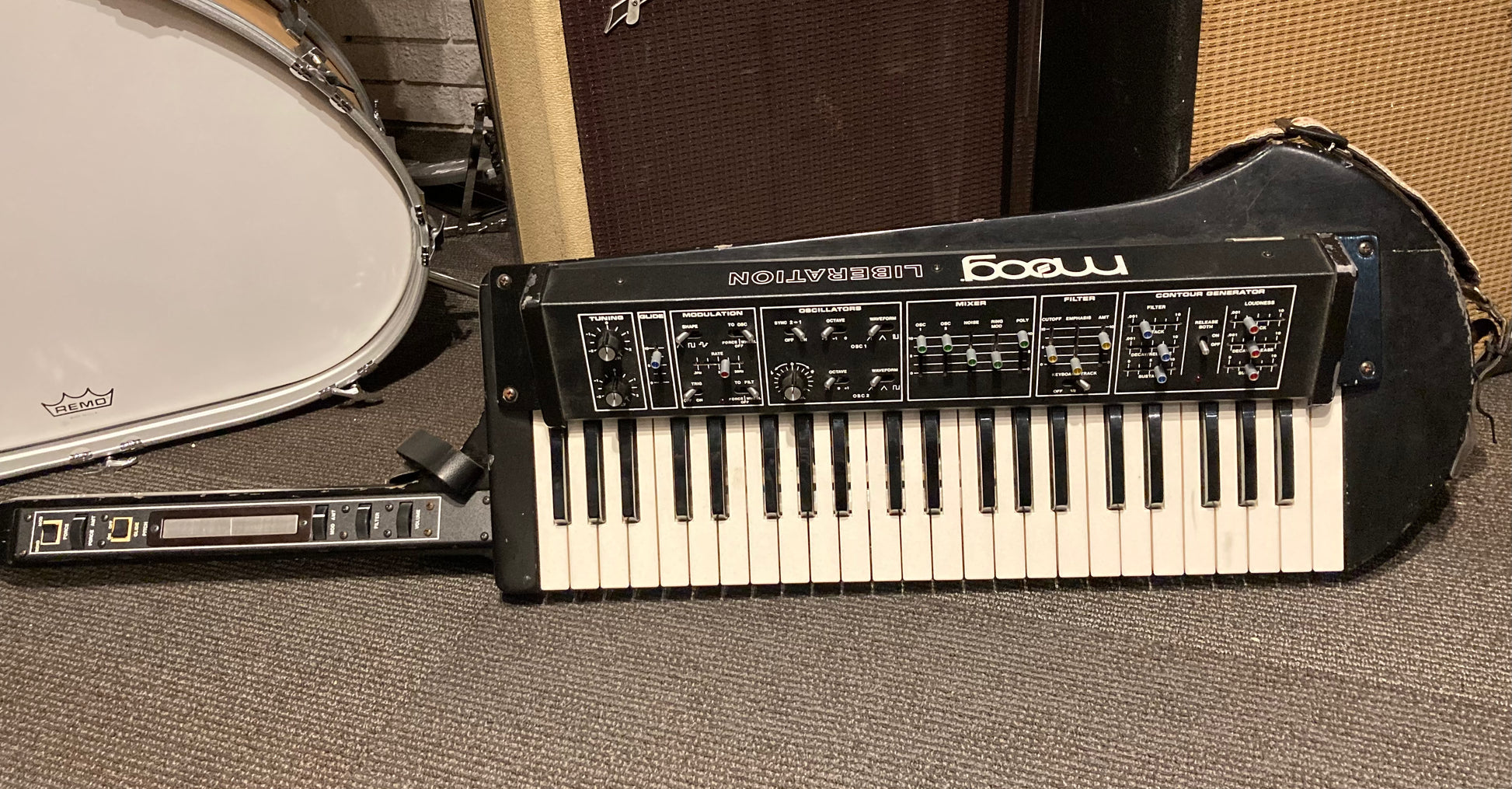

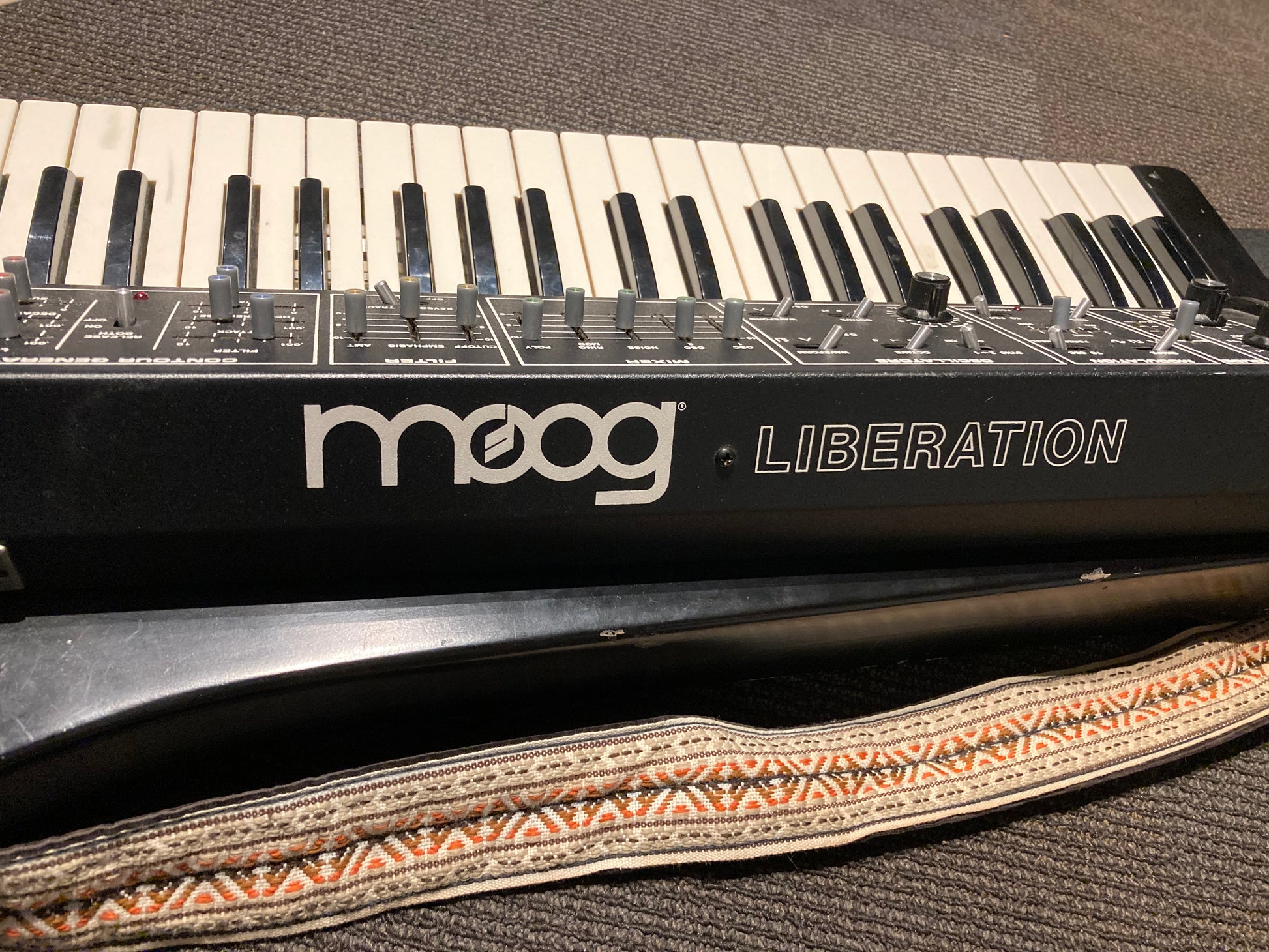

Vintage Moog Liberation Keytar Synth from the early 80's.

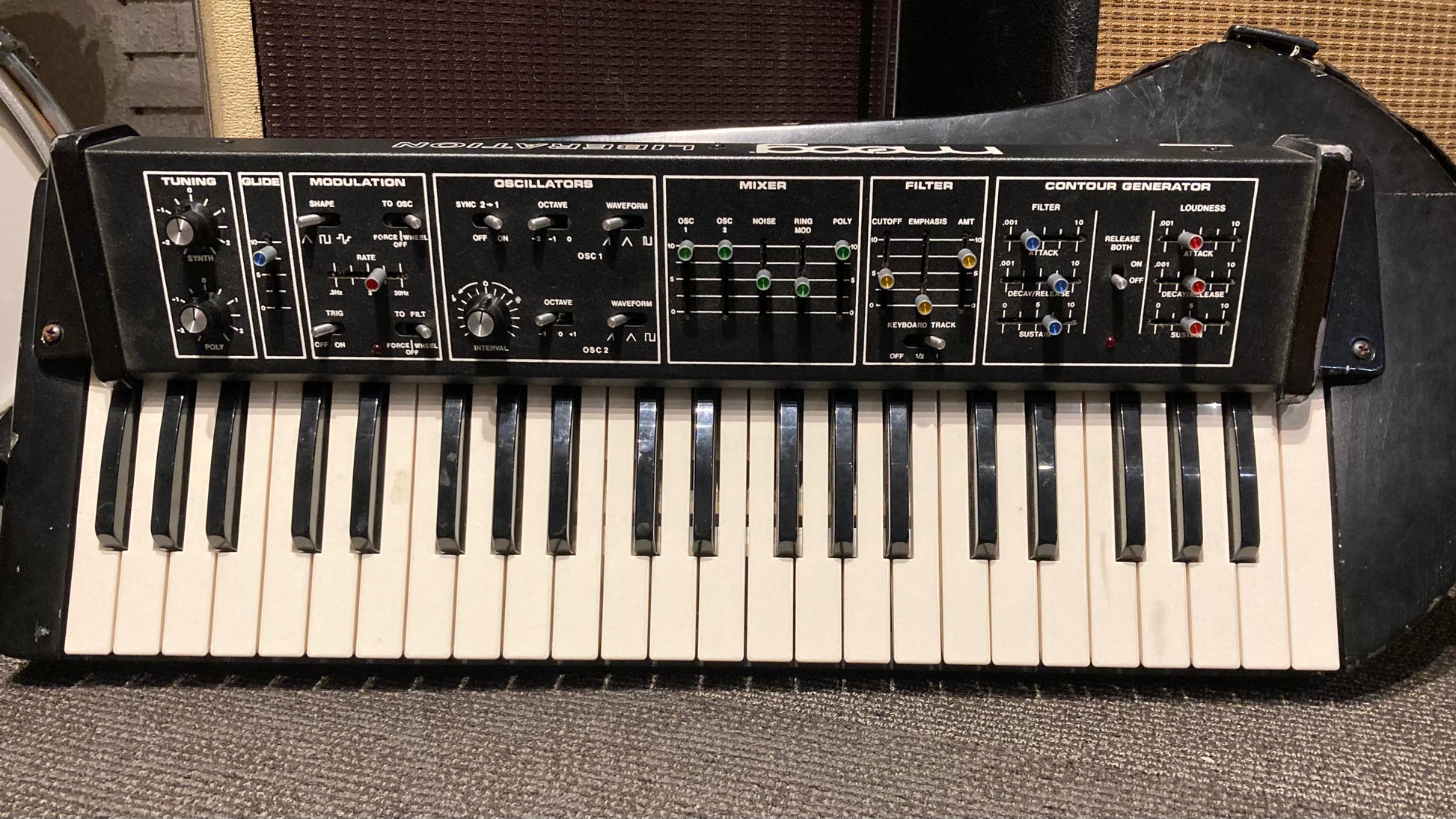

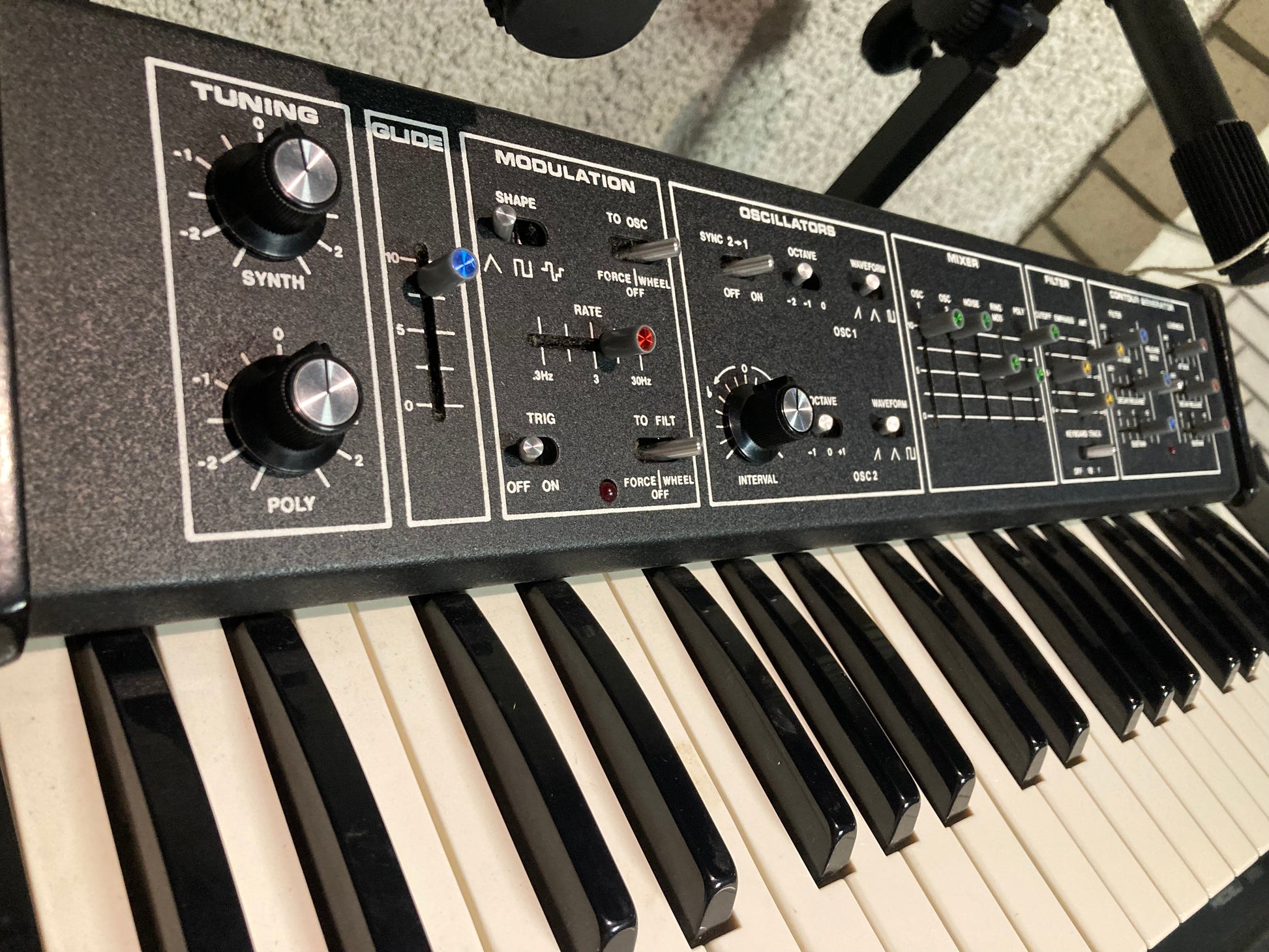

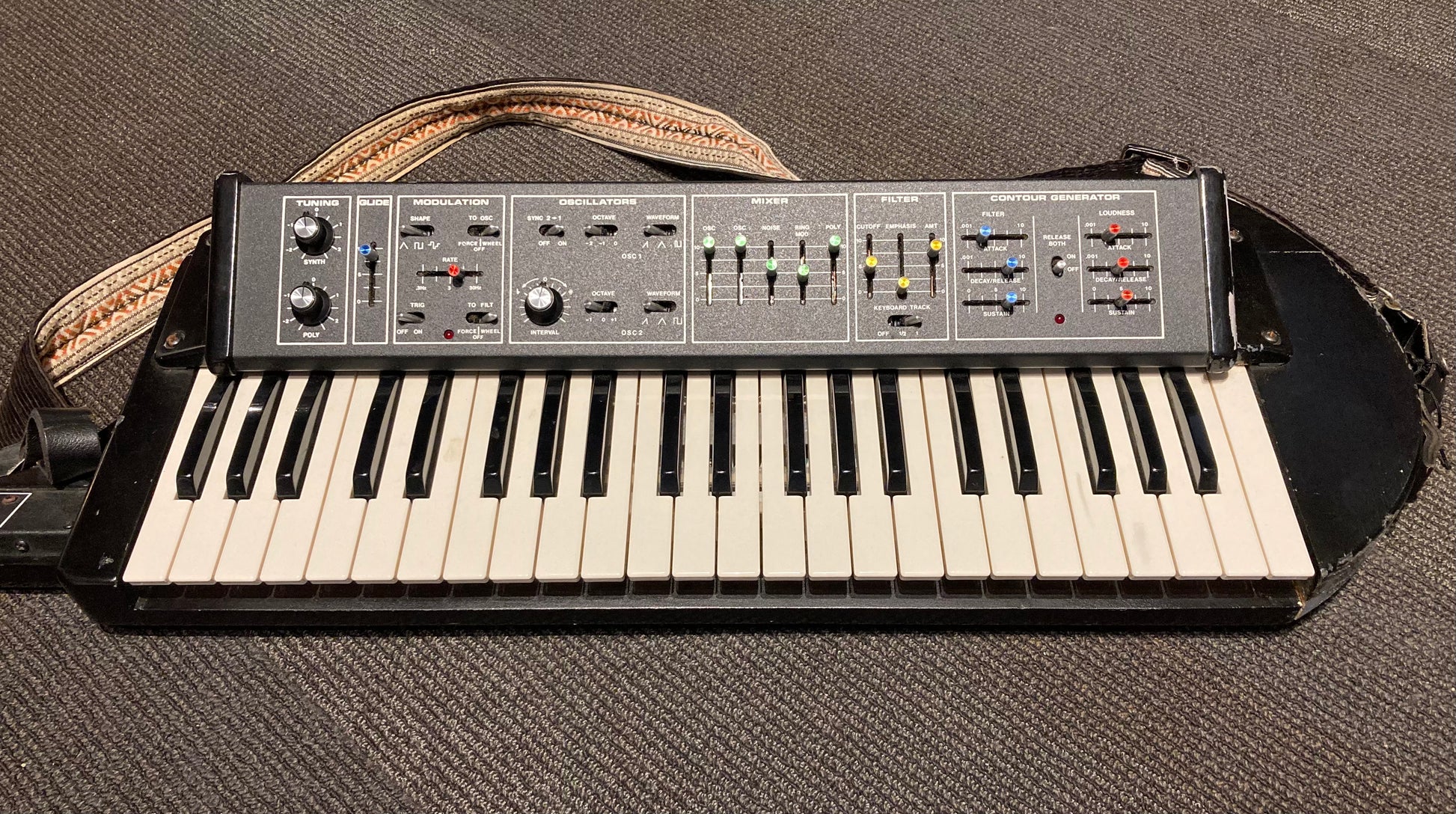

This is an all analog 2 oscillator synth with sawtooth, triangle and square waveforms, a 3 octave range, and a 24 dB/oct Moog filter section with its own cutoff, resonance and envelope controls.

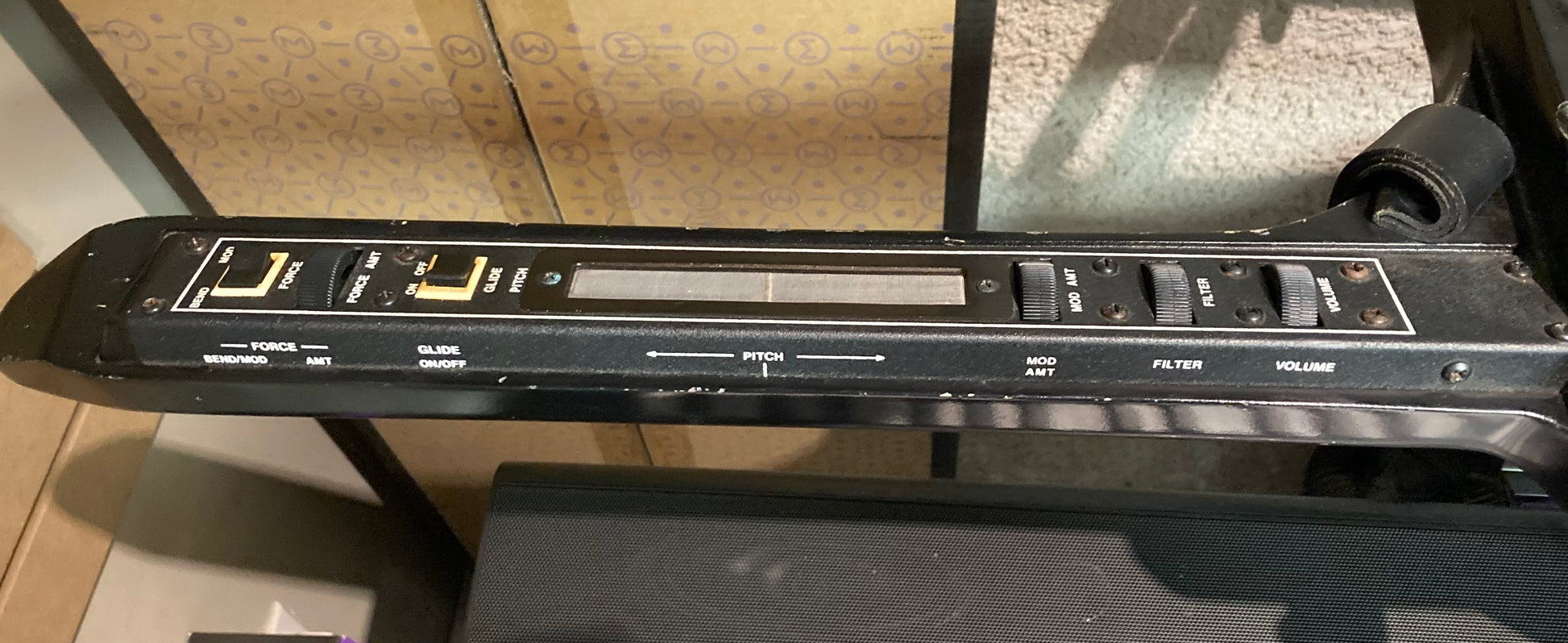

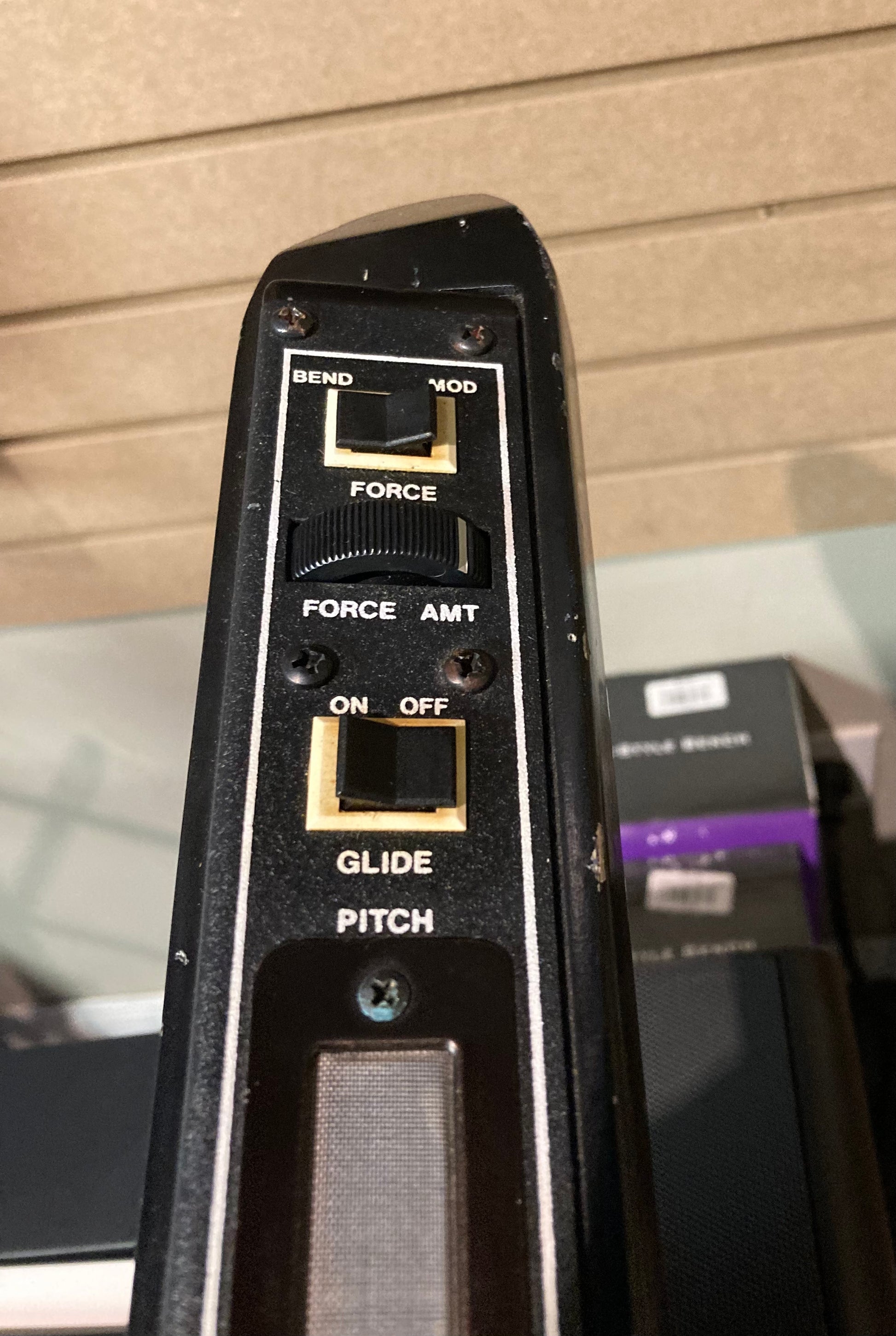

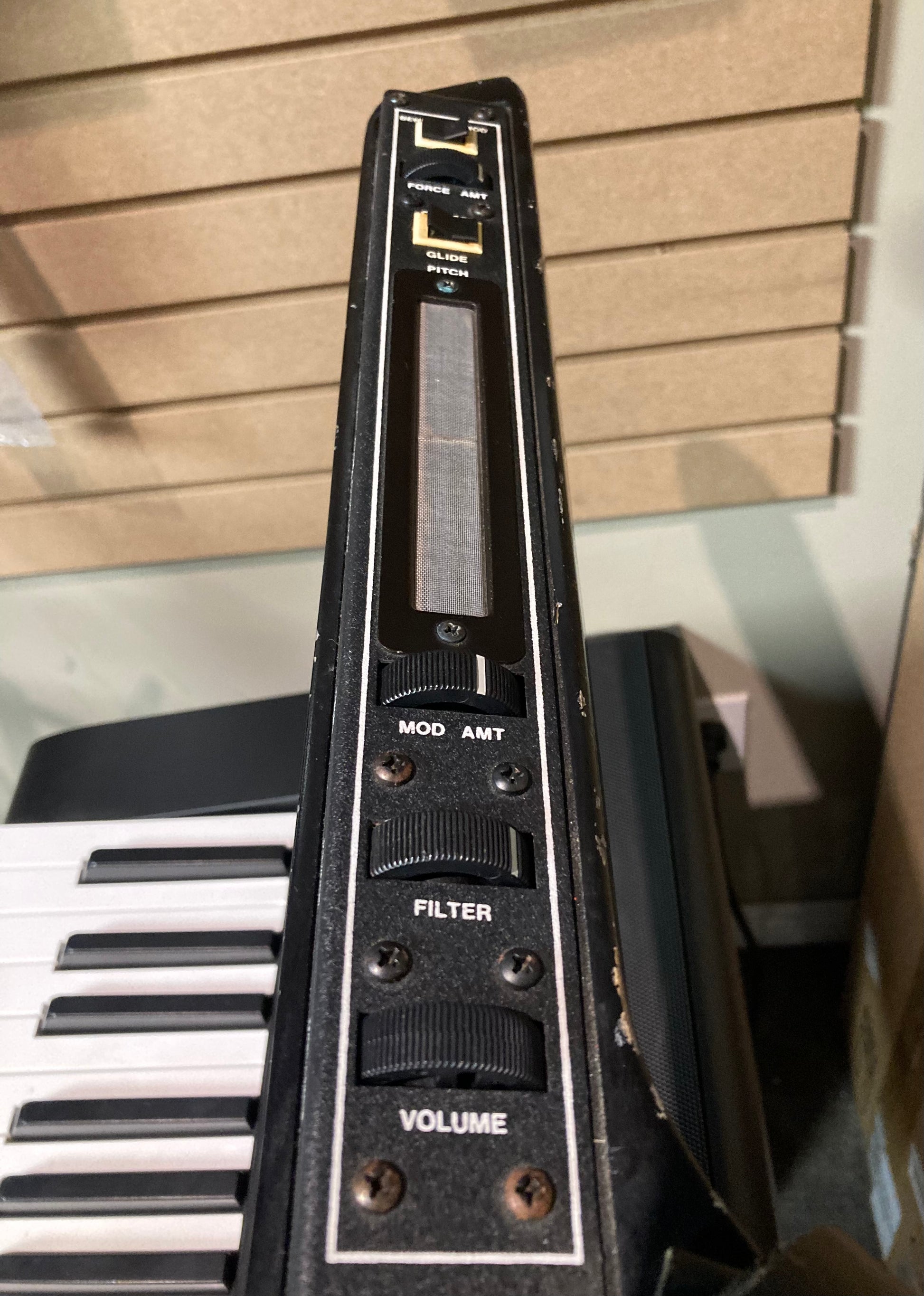

Other on-board features include a Ring Modulator, Noise Generator, syncable VCO's and ribbon controller located in the hand-grip portion of the synth which can be used for pitch bending and modulation effects.

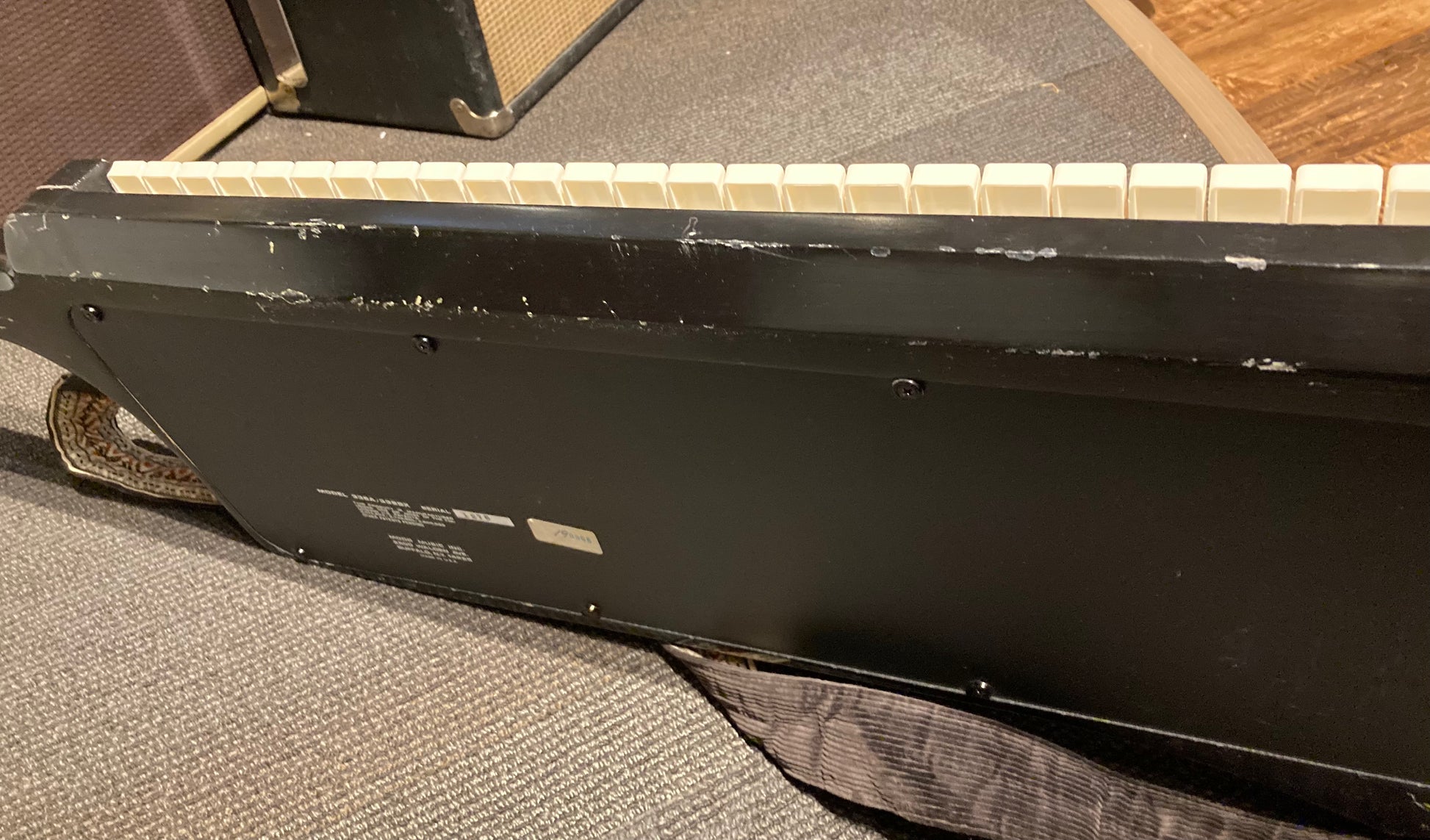

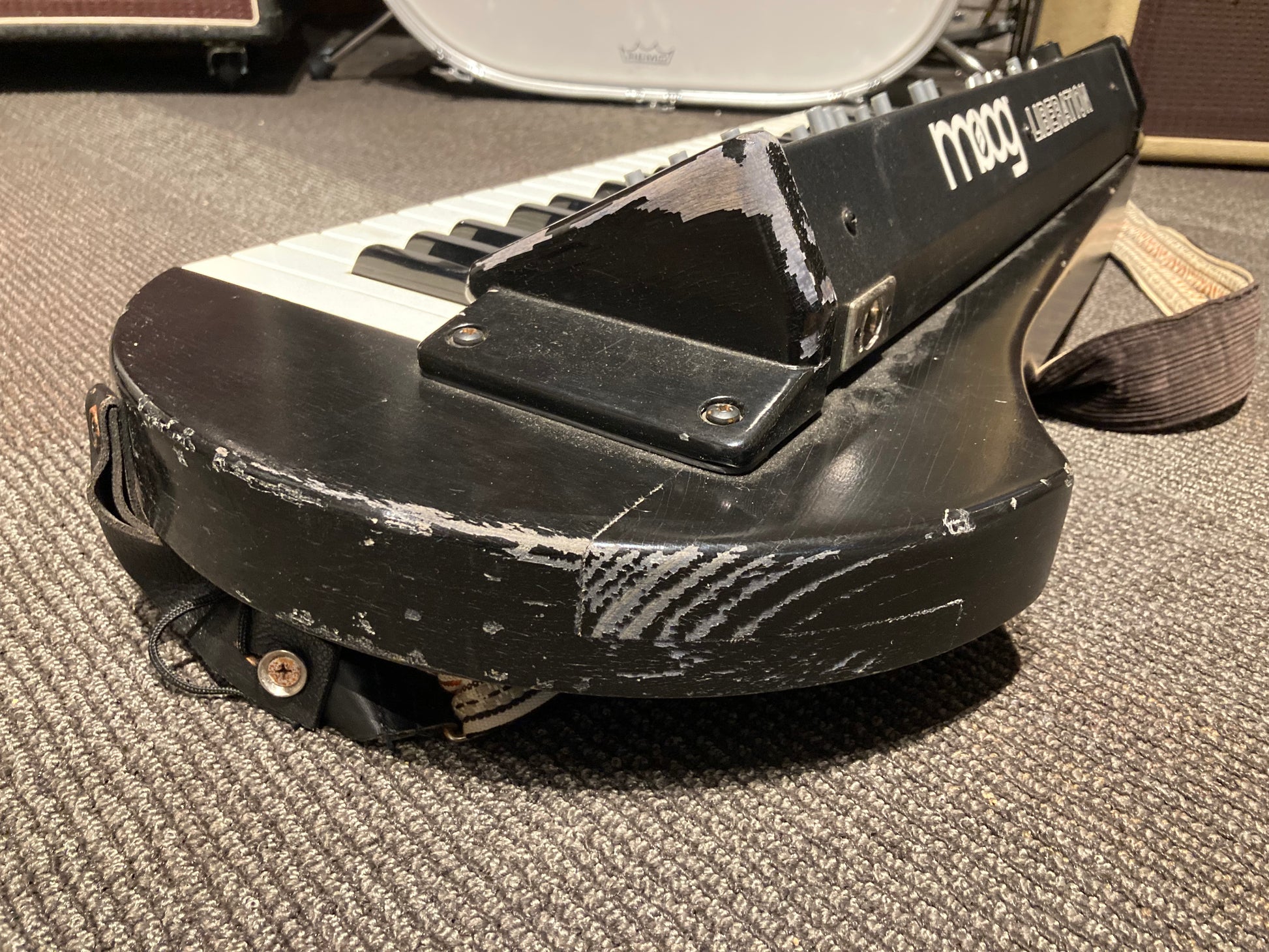

Cosmetically it is in very good shape for it's age with the standard wear that can be expected with an instrument of this age.

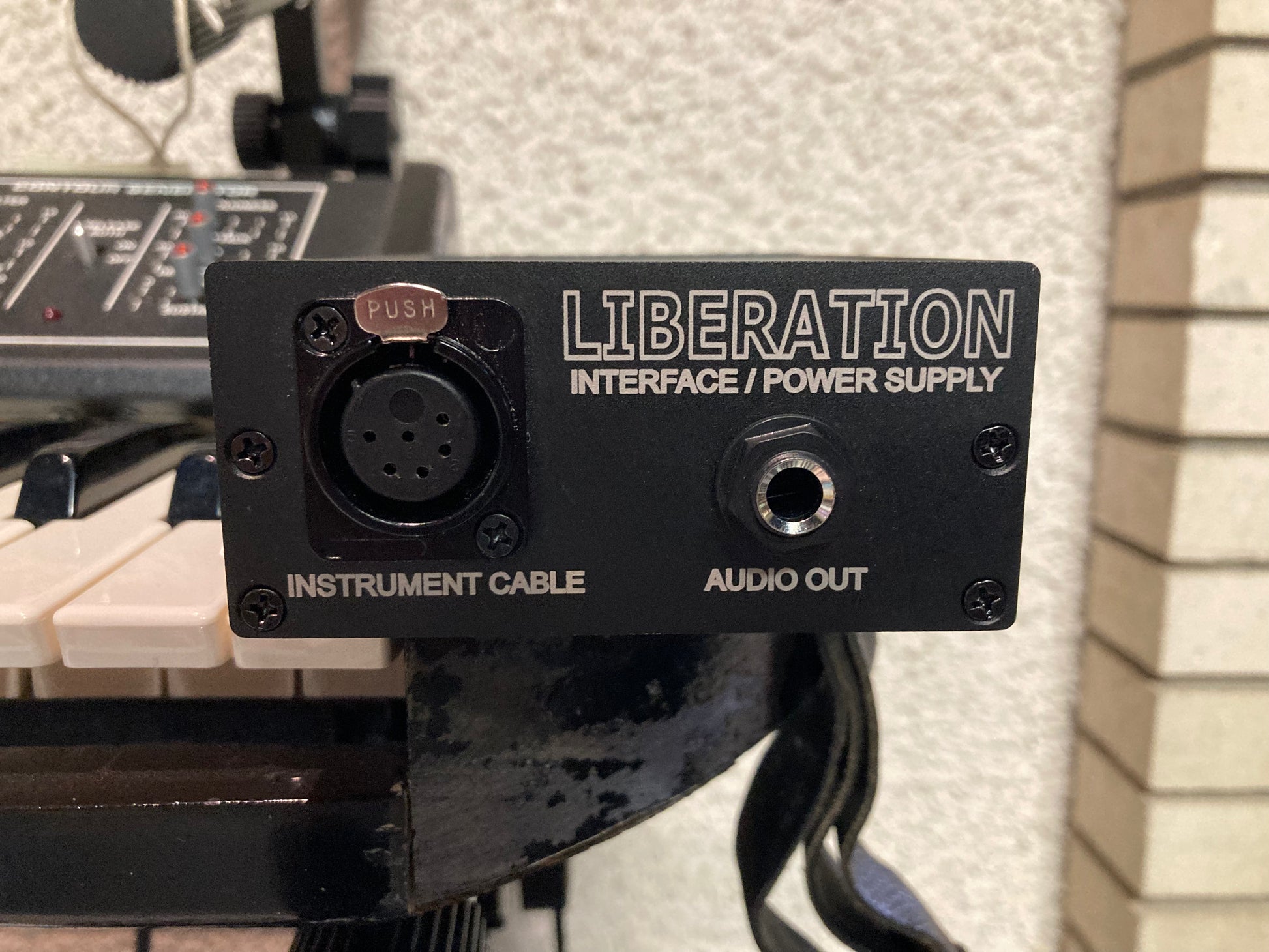

Outfitted with an aftermarket power supply that is a lot smaller than the original 2 space rack mount supply it originally came with.

Recently inspected in store and plays and sounds great!

Sold without a case or bag.

Specs:

  • Polyphony - Monophonic (plus 10-voice poly-section organ)
  • Oscillators - 2 VCO: OSC 1: Pitch: 32', 16, '8'; Wave: Sawtooth, Triangle, Rectangle. OSC 2 : Pitch: 16', 8', 4'; Wave: Sawtooth, Triangle, Square.
  • Memory - NONE
  • Filter - one 24dB/oct lowpass; cutoff, emphasis, env amount; Attack, Decay/Release, Sustain.
  • VCA - Attack, Decay/Release, Sustain
  • Keyboard - 44 keys with Ribbon controller
  • Arpeg/Seq - NO
  • Control - CV / GATE
