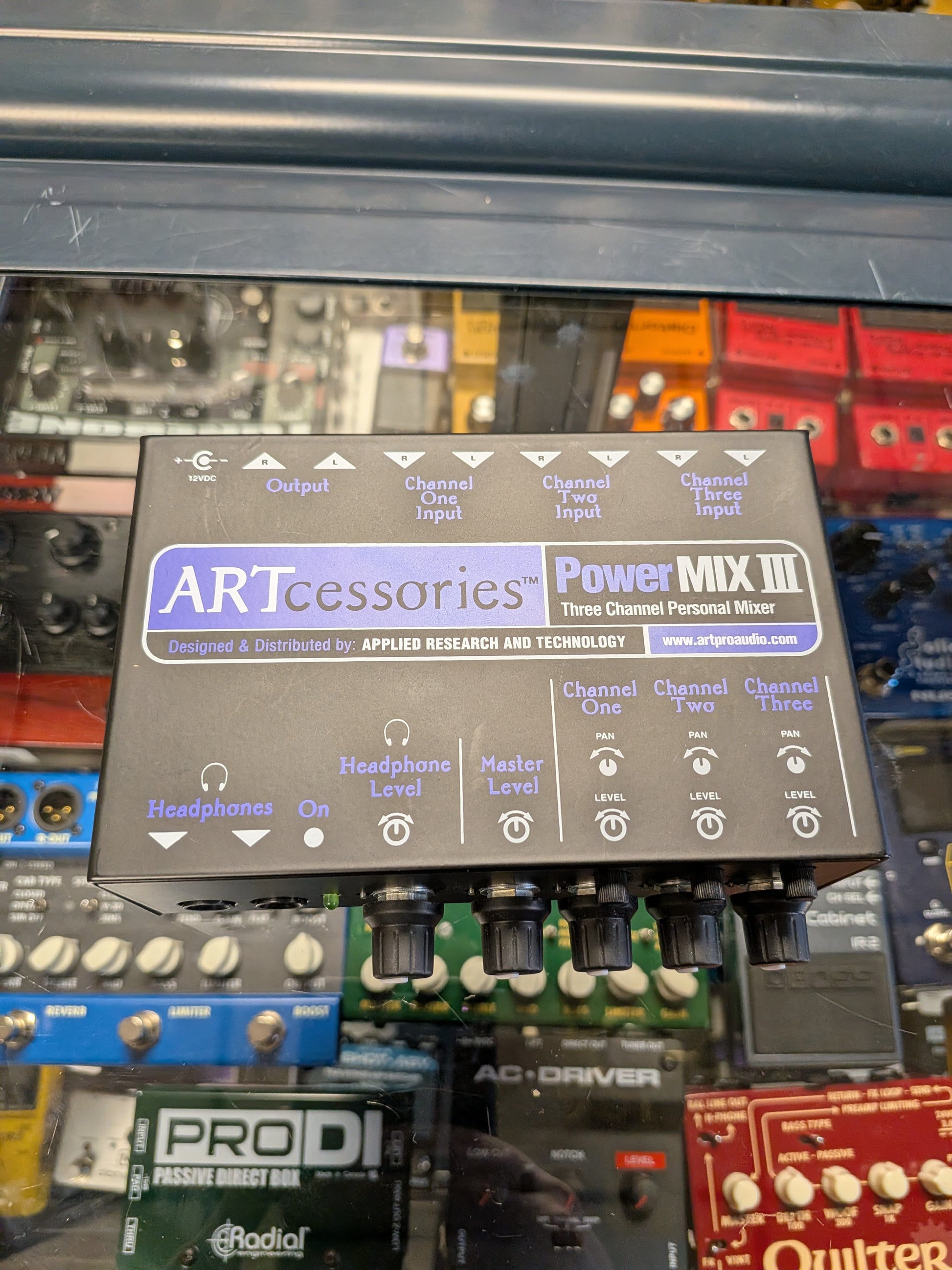

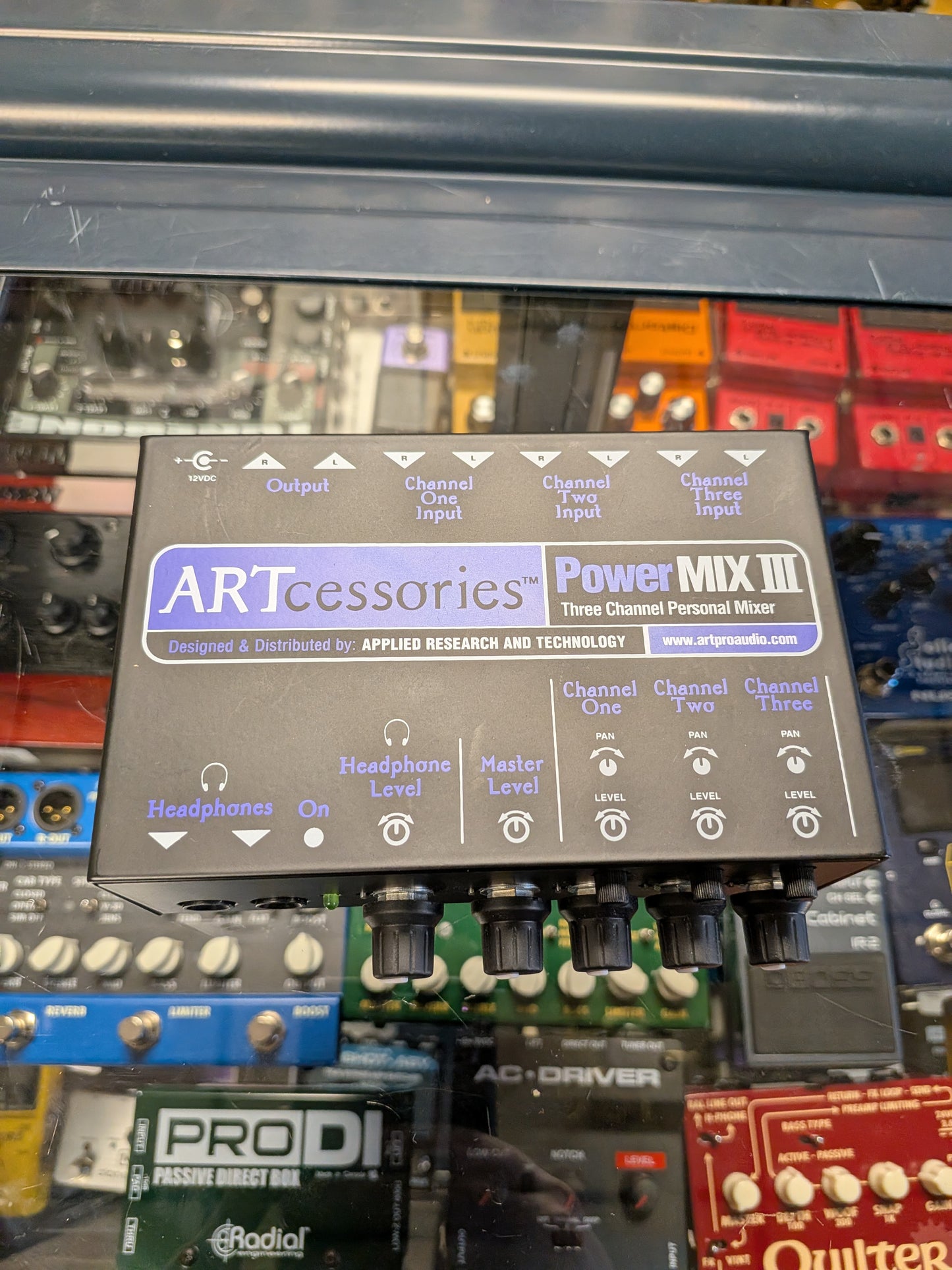

ART Pro Audio 3-Channel Stereo Mini Mixer (Used)

This unit is in very good condition with on damage and minimal cosmetic wear. It has been tested and is working with no issues. The original power supply is included.

From ART

Problem: How do you connect a CD player, a synthesizer and the line output from a bass amp to a tape deck?

Solution: Use a simple stereo mixer. The PowerMIX III can accept either mono or stereo signals and mixes them down to stereo or identical L/R mono signals.

Additionally, the PowerMIX III provides a headphone output with its own level control.

Usage:

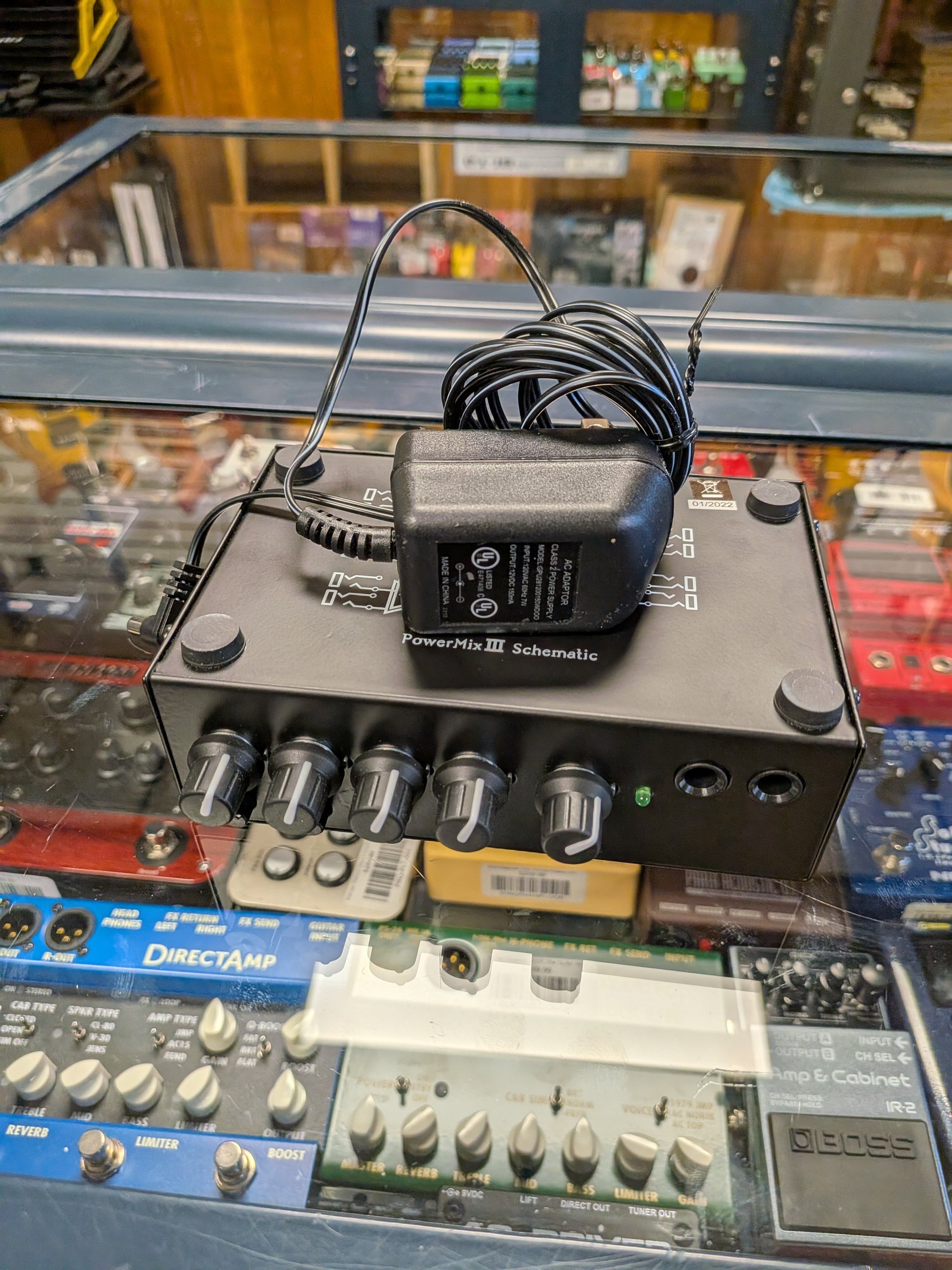

1. Plug the AC adapter into the 12V DC input on the PowerMIX III and plug the other end into a 120V AC wall socket.

2. Plug your stereo signal sources into the separate L/R Inputs on channels 1 to 3. Mono sources can be plugged into the Left Input on any channel. It is not recommended that you connect 2 mono sources to any one channel.

SPECIFICATIONS:
Maximum Gain: +27dB
Input Impedance: 10k ohms
Maximum Input Level: +30dB
Maximum Output Level: +13dB
Output Impedance: 100 ohms
Total Harmonic Distortion: > 0.005%
Adapter: included
Power: 12V DC
Dimensions: 5.625x3.75x1.75 inches (143mmx92mmx45mm)
Weight: 1.3 lbs (590g)
