Audio Sprockets Tone Dexter II

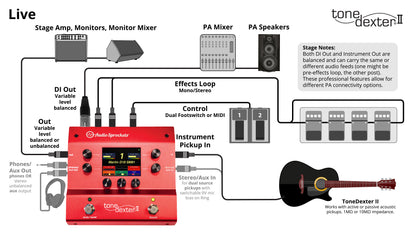

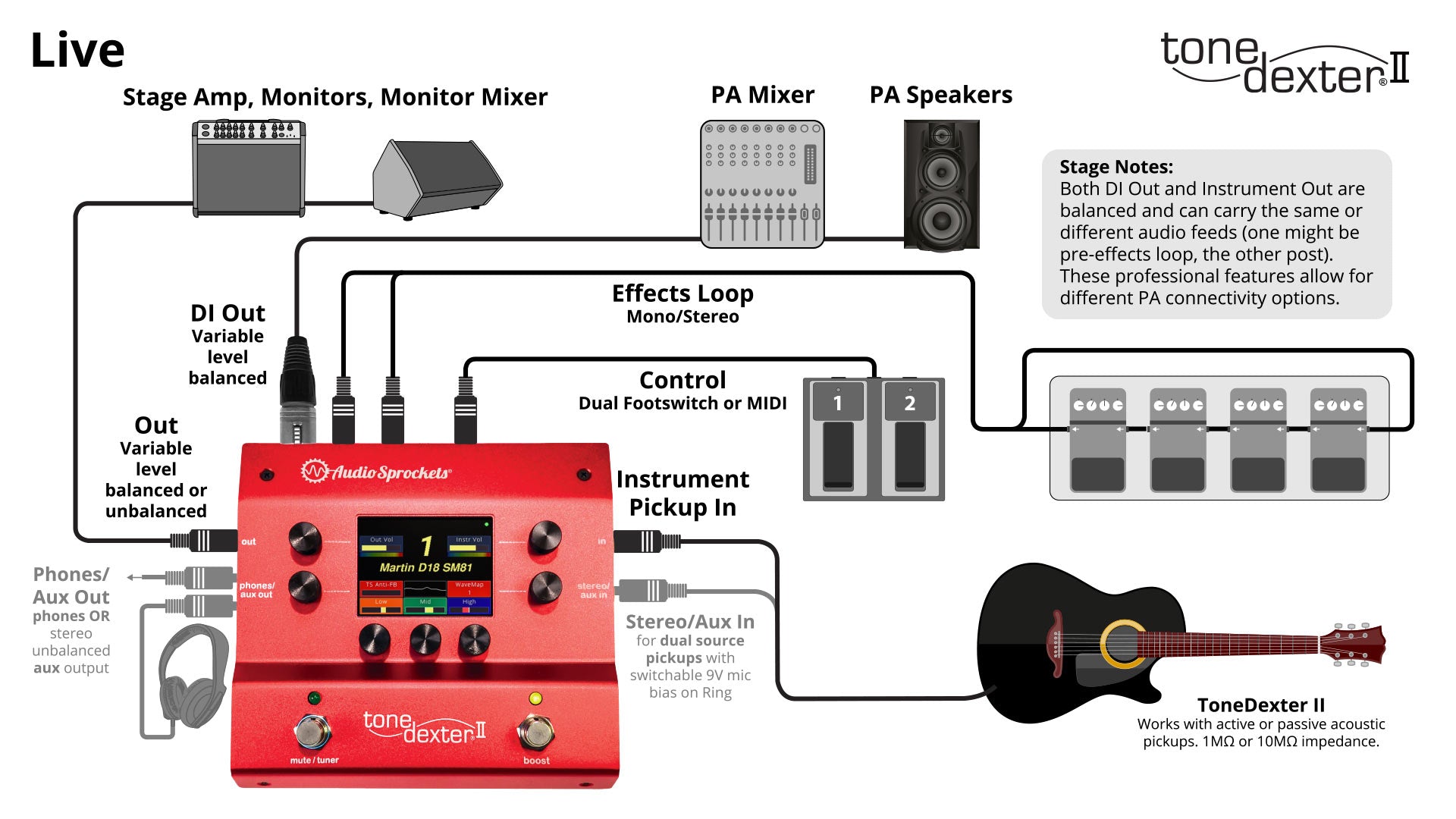

Plug your pickup into ToneDexter II and the output to the PA or your acoustic instrument amp, select a WaveMap sound and play. Your live pickup sound will match your studio mic.

It’s simple and it will change the way you play live.

ToneDexter II restores the rich body tone of your acoustic instrument to the pickup using proprietary digital signal processing technology combined with a pristine analog signal path.

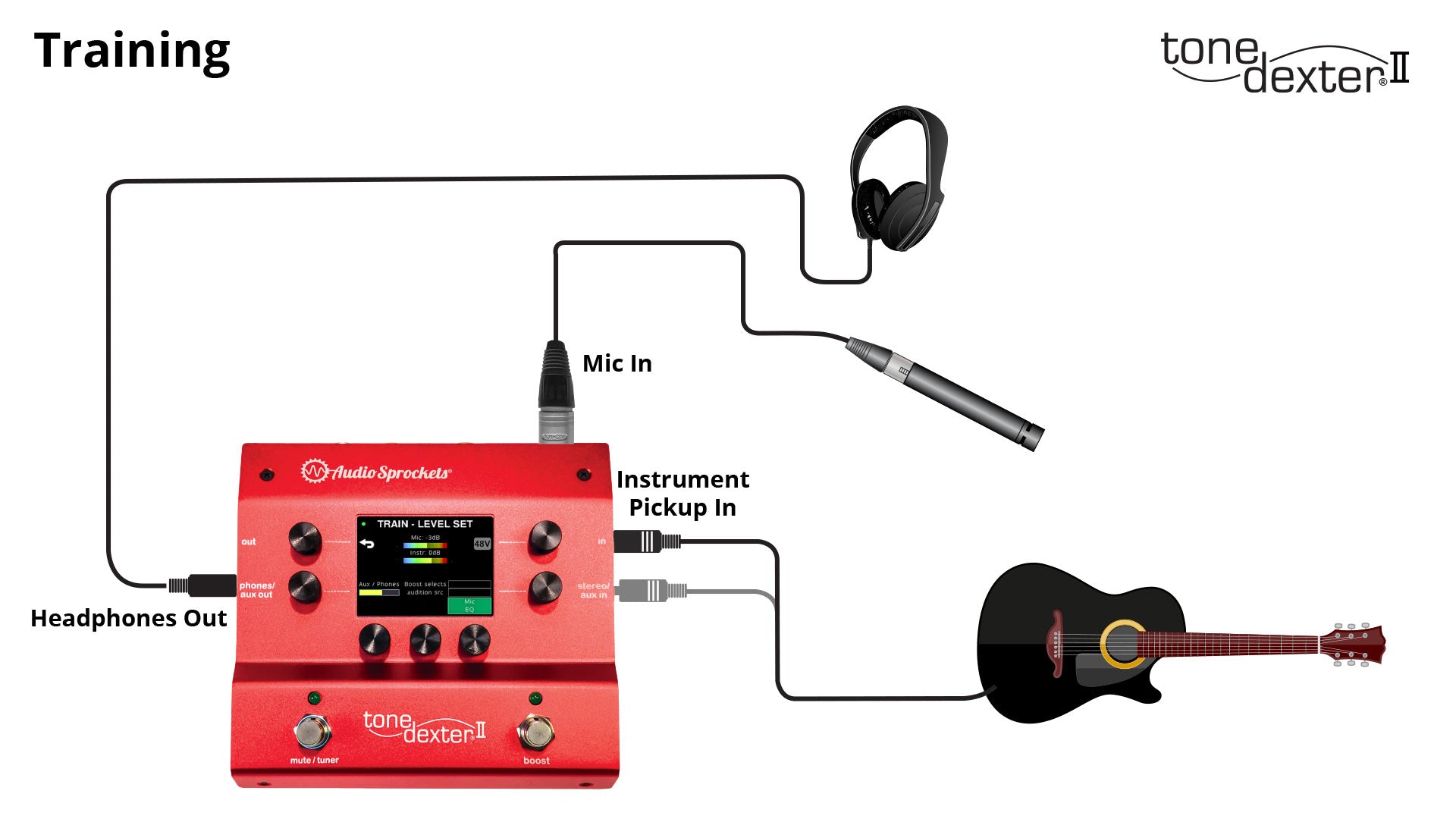

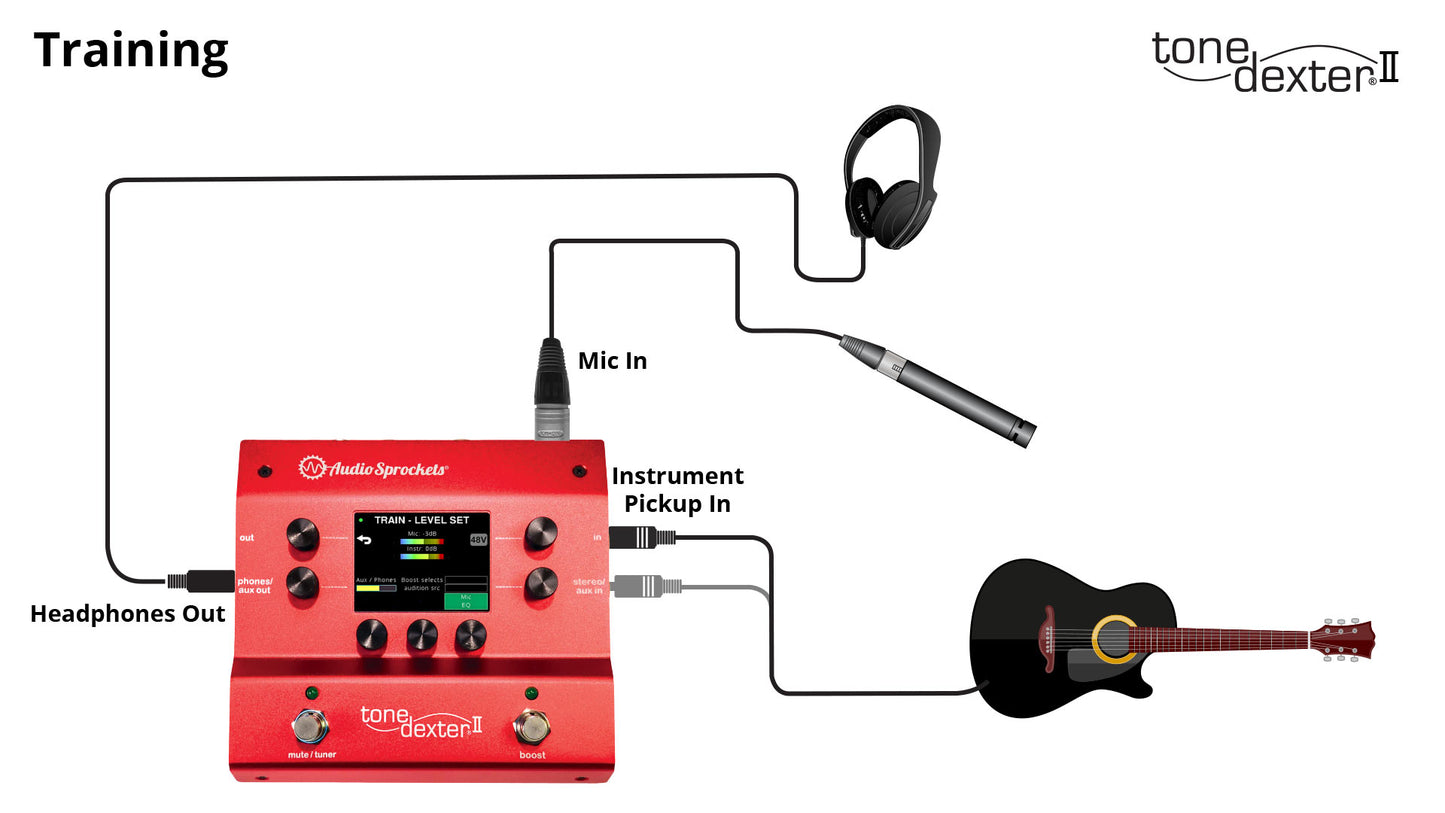

Audio Sprockets has created a way to learn the difference between the sound coming from the pickup, and the sound coming from a microphone, placed in front of the instrument, and use that information to create a transformation called a WaveMap.

Once you have stored your mic sound into ToneDexter II, simply plug in your instrument and play.

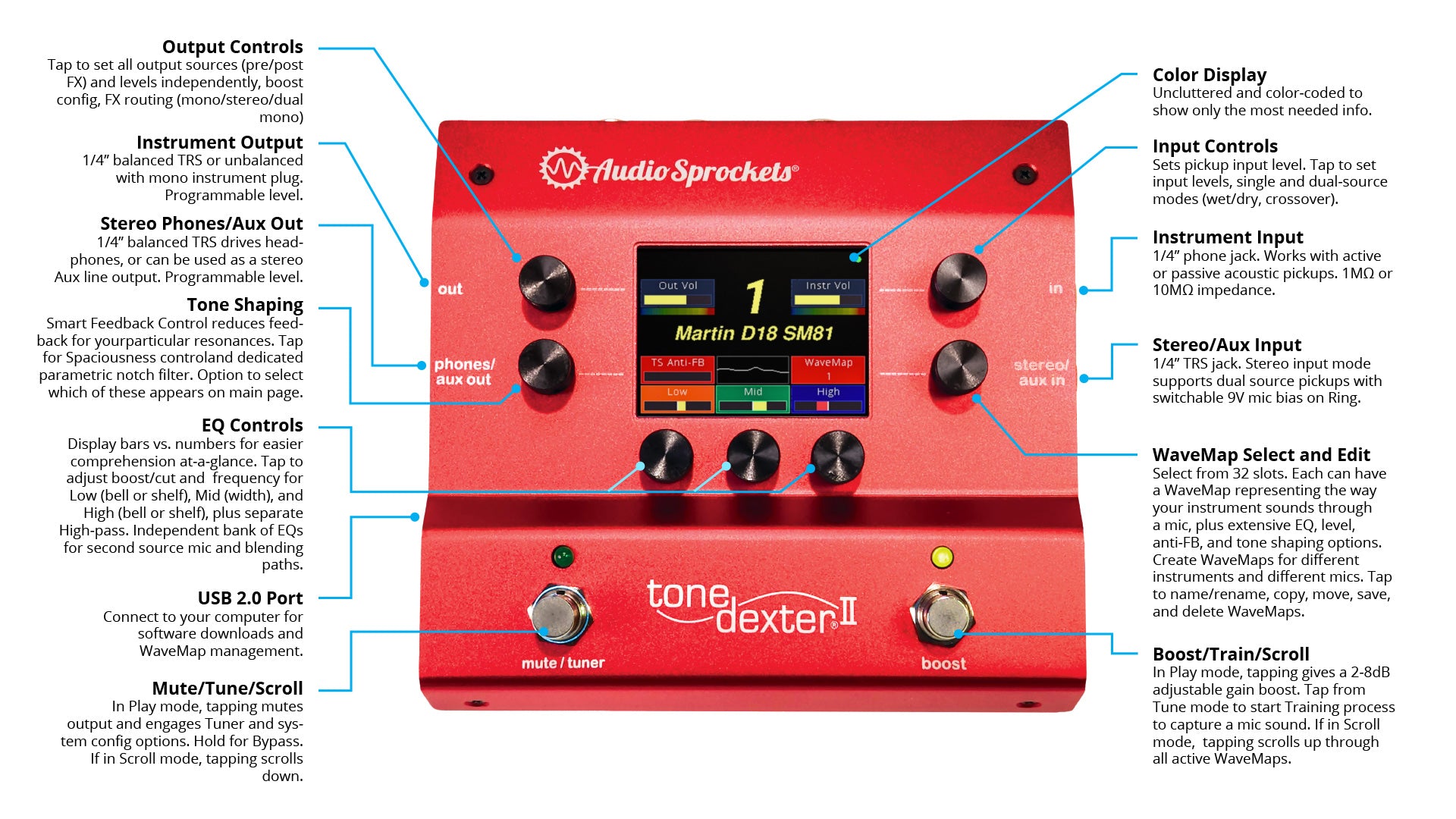

ToneDexter II Features

• Works on any acoustic instrument, with most active or passive piezo pickup systems

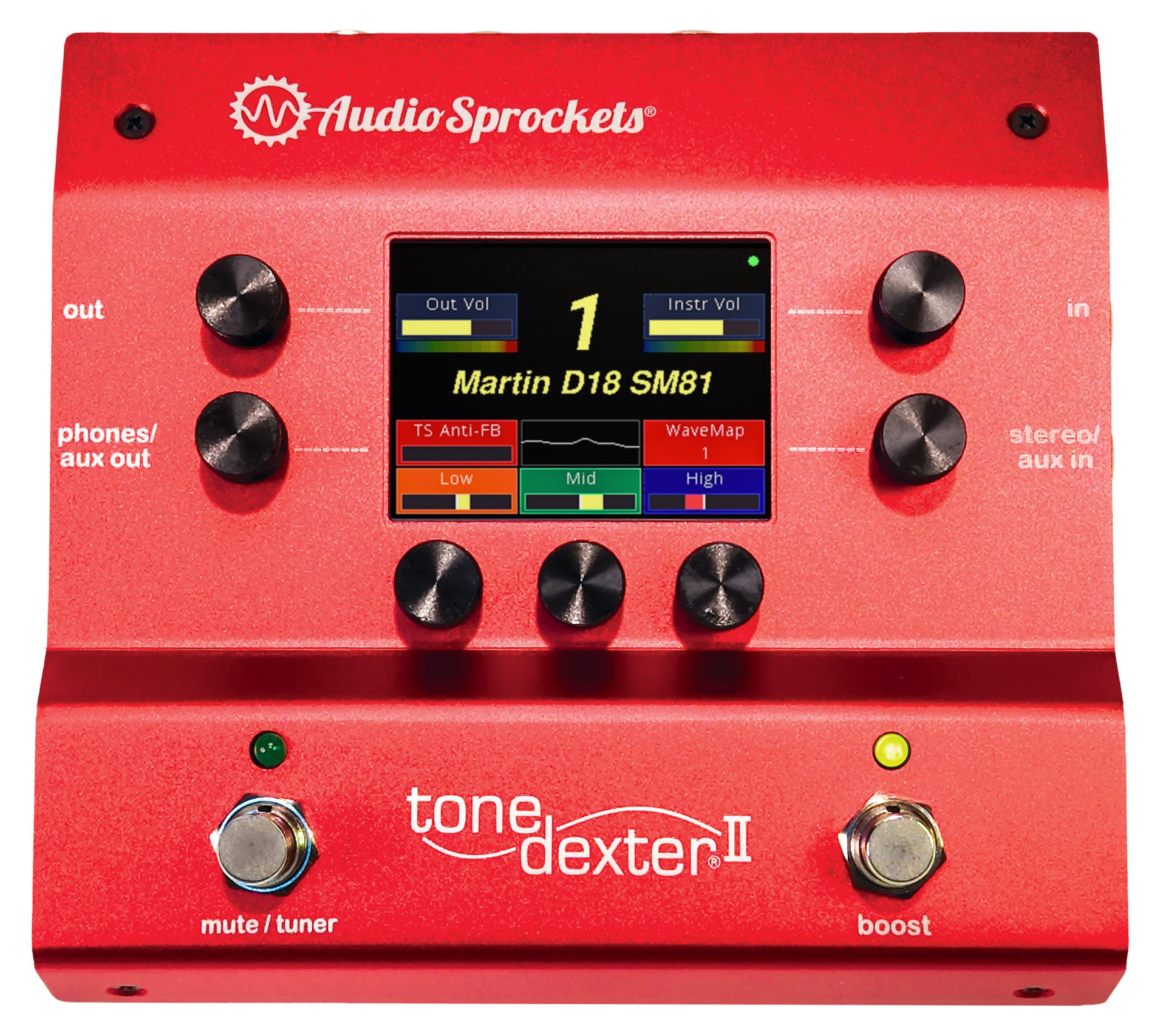

• Color screen, context sensitive controls and labels
• Stores 32 custom WaveMap Presets that define the sound of your instrument thru a mic
• Mute switch that activates a built-in precision tuner
• Boost switch for solos with extra gain
• Character control tailors punch and spaciousness
• Comprehensive EQ Low-Mid-Hi controls
• Intelligent feedback control
• Stereo capable Effects Loop
• Headphone Out or Stereo Line Out

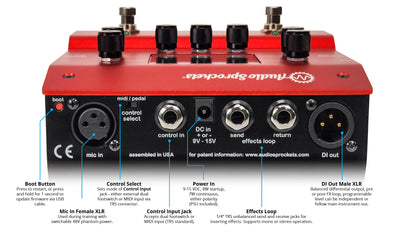

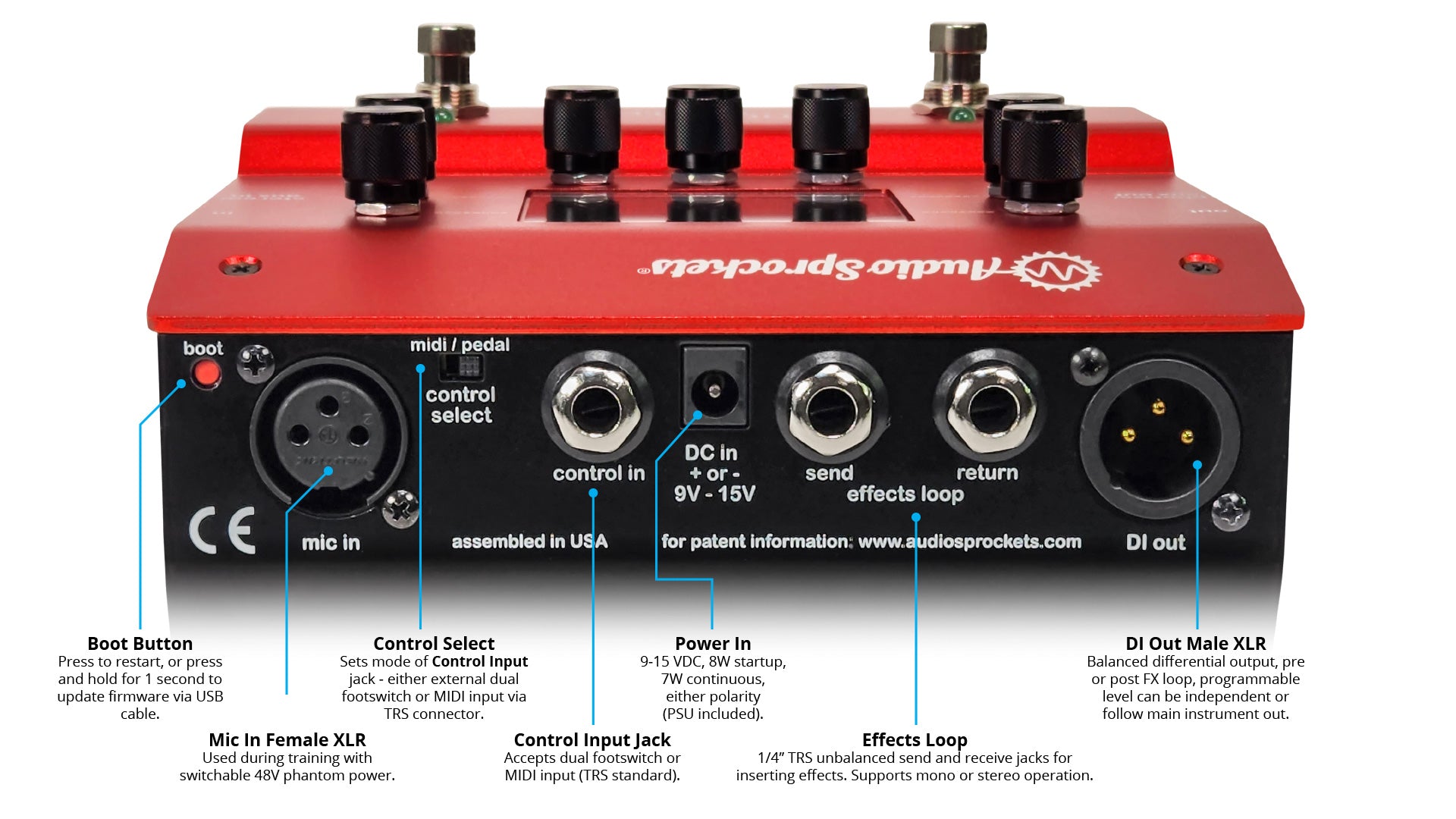

ToneDexter II Specifications

• <2ms latency
• 1/4″ pickup input, 1MΩ (10MΩ w cable mod)
• Support for stereo, and dual-source pickups with switchable 9V mic bias on Ring
• 1/4″ line output with prog. level
• XLR DI output with prog. level
• Analog boost post FX-loop for no headroom loss
• XLR mic in with 48V phantom
• Firmware upgrade and Preset management via USB
• +/-15V internal supplies for pro headroom and dead quiet operation
• 6.3″ (160mm) W x 5.9″ (150mm) D x 2.3″ (58mm) H 2.0 lbs (.907 kg)
