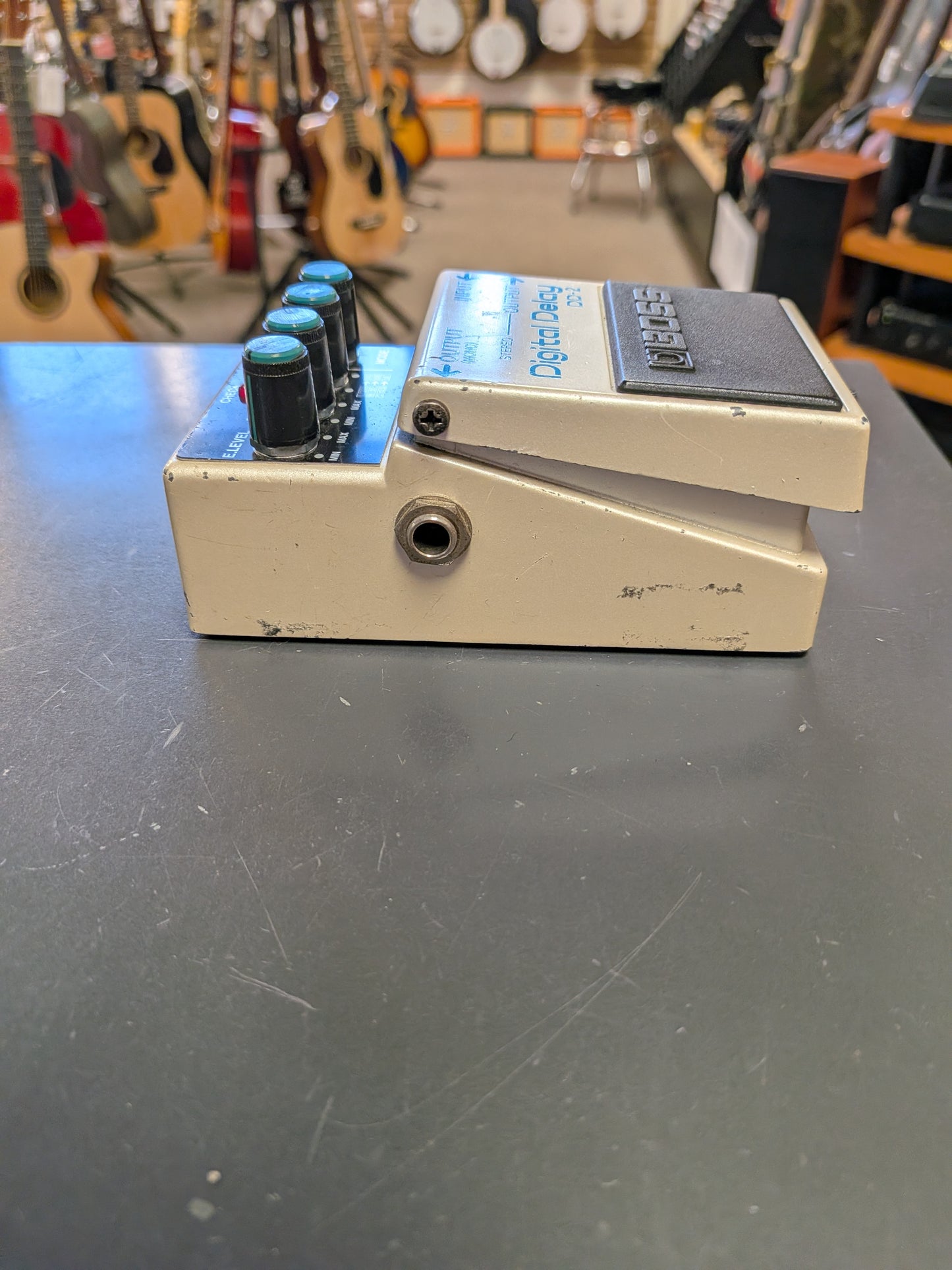

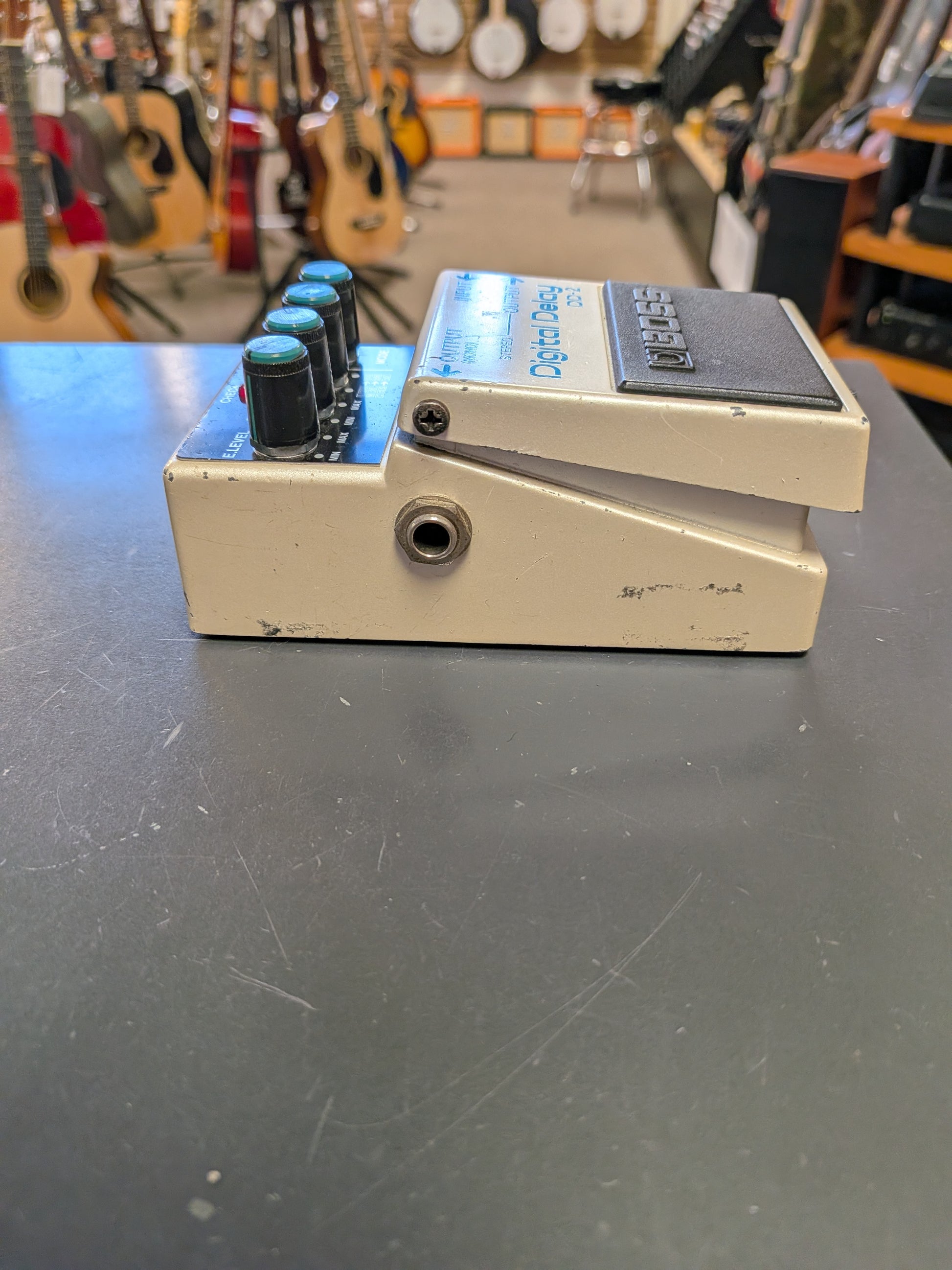

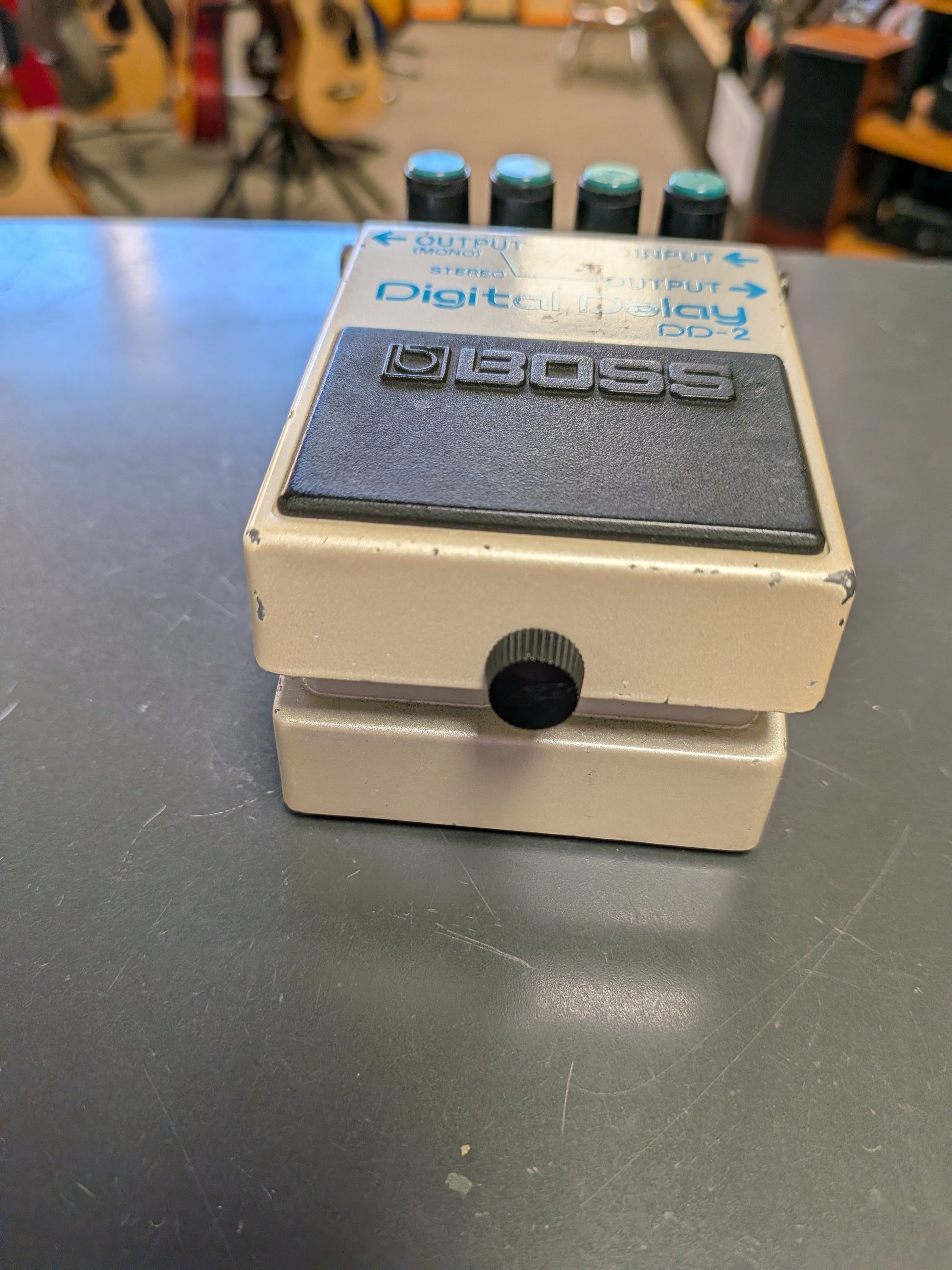

Boss DD-2 Digital Delay Pedal (1985)

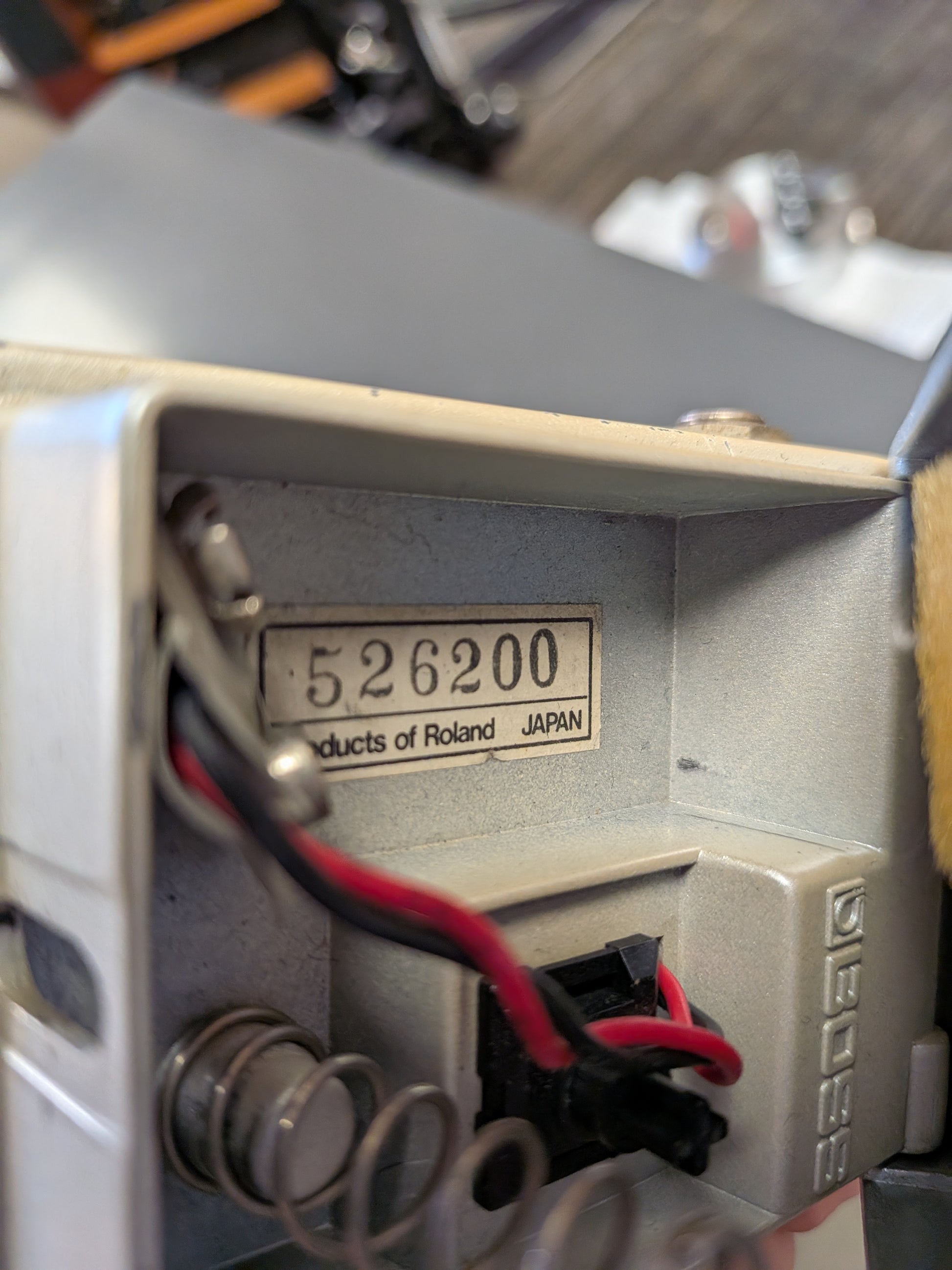

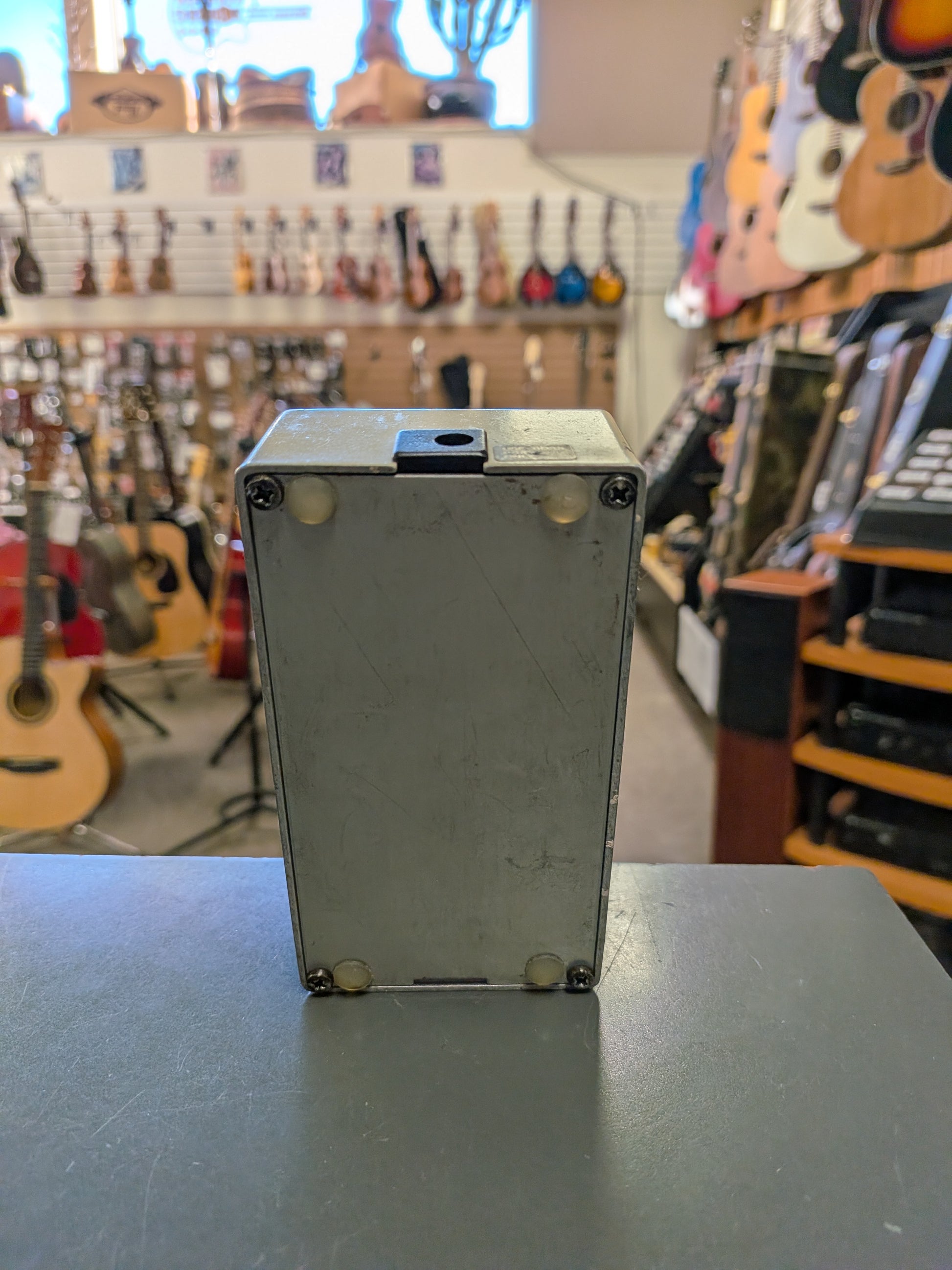

This pedal is in good condition with some cosmetic wear. It has been fully tested and is working well with no issues. The backplate rubber and sticker were removed at some point in time. This pedal does not come with the original box.

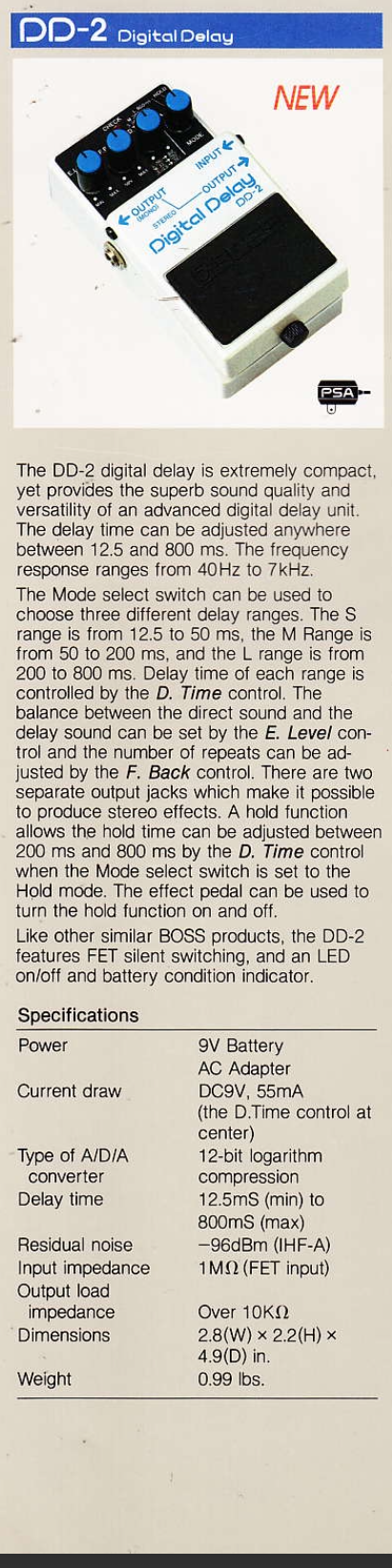

This writeup was found in the 1984 Boss Catalog

"The DD-2 digital delay is extremely compact, yet provides superb sound quality and versatility of an advanced digital delay unit. The delay time can be adjusted anywhere between 12.5 and 800 ms. The frequency response ranges from 40hz to 7khz.

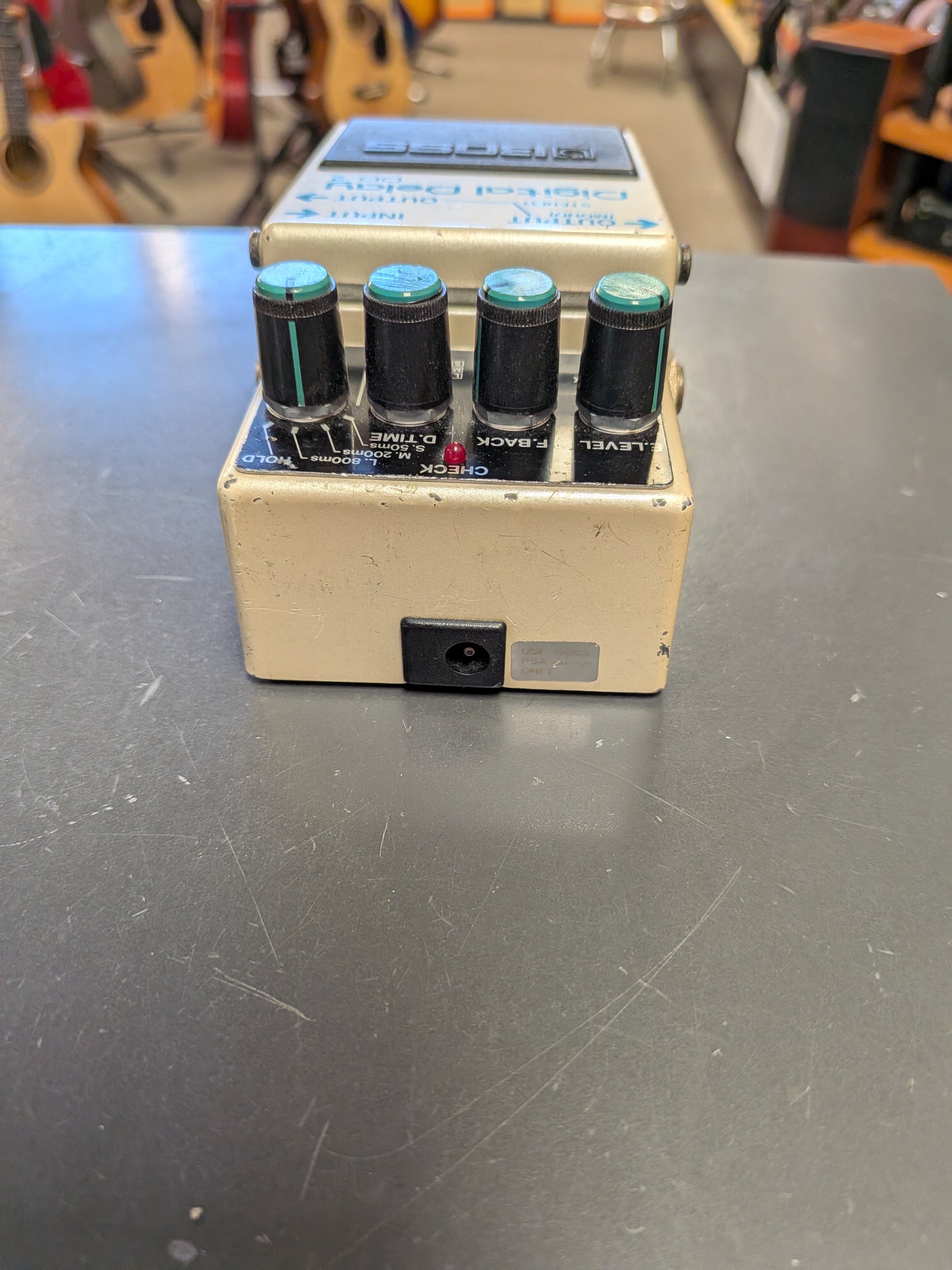

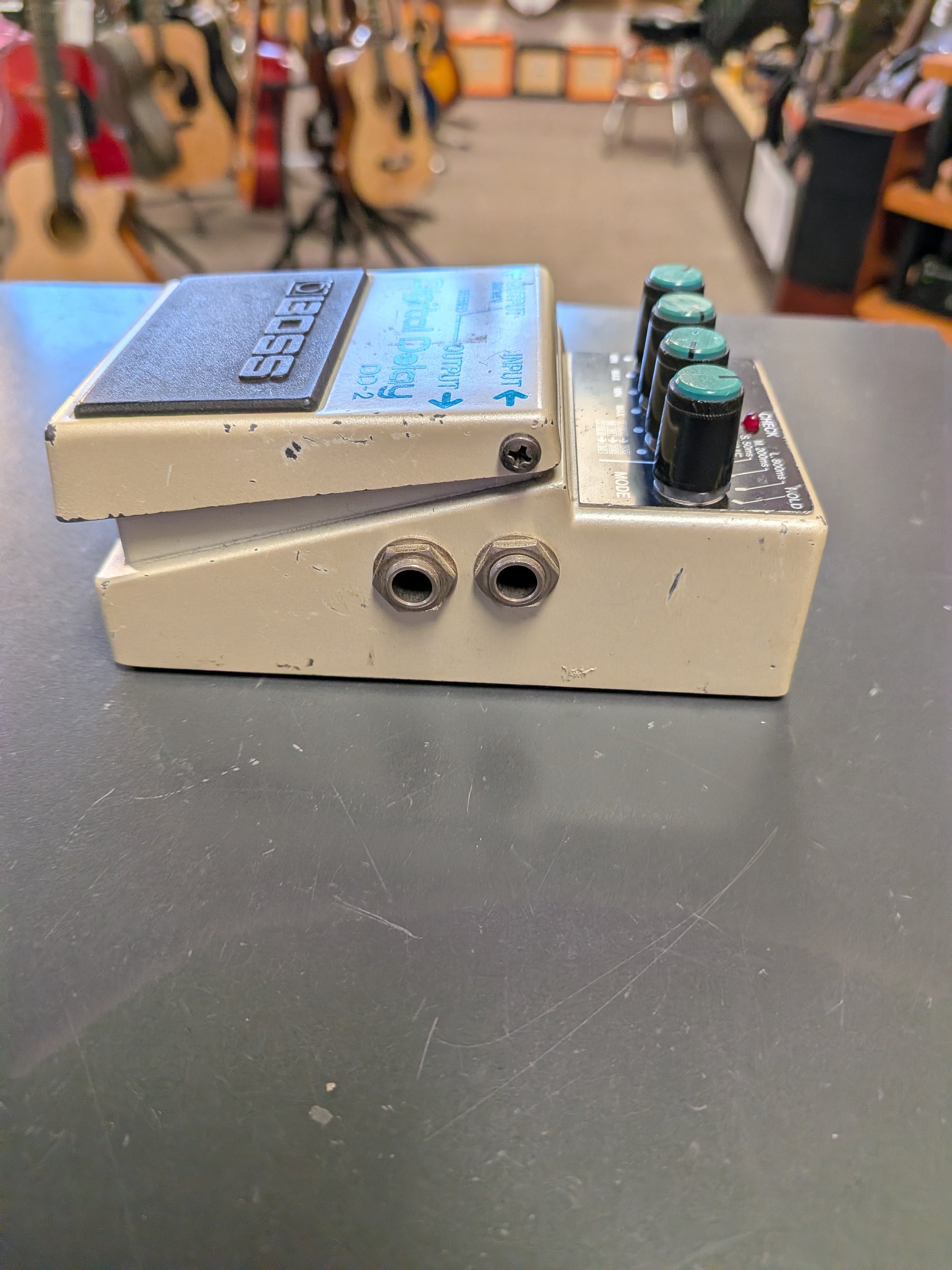

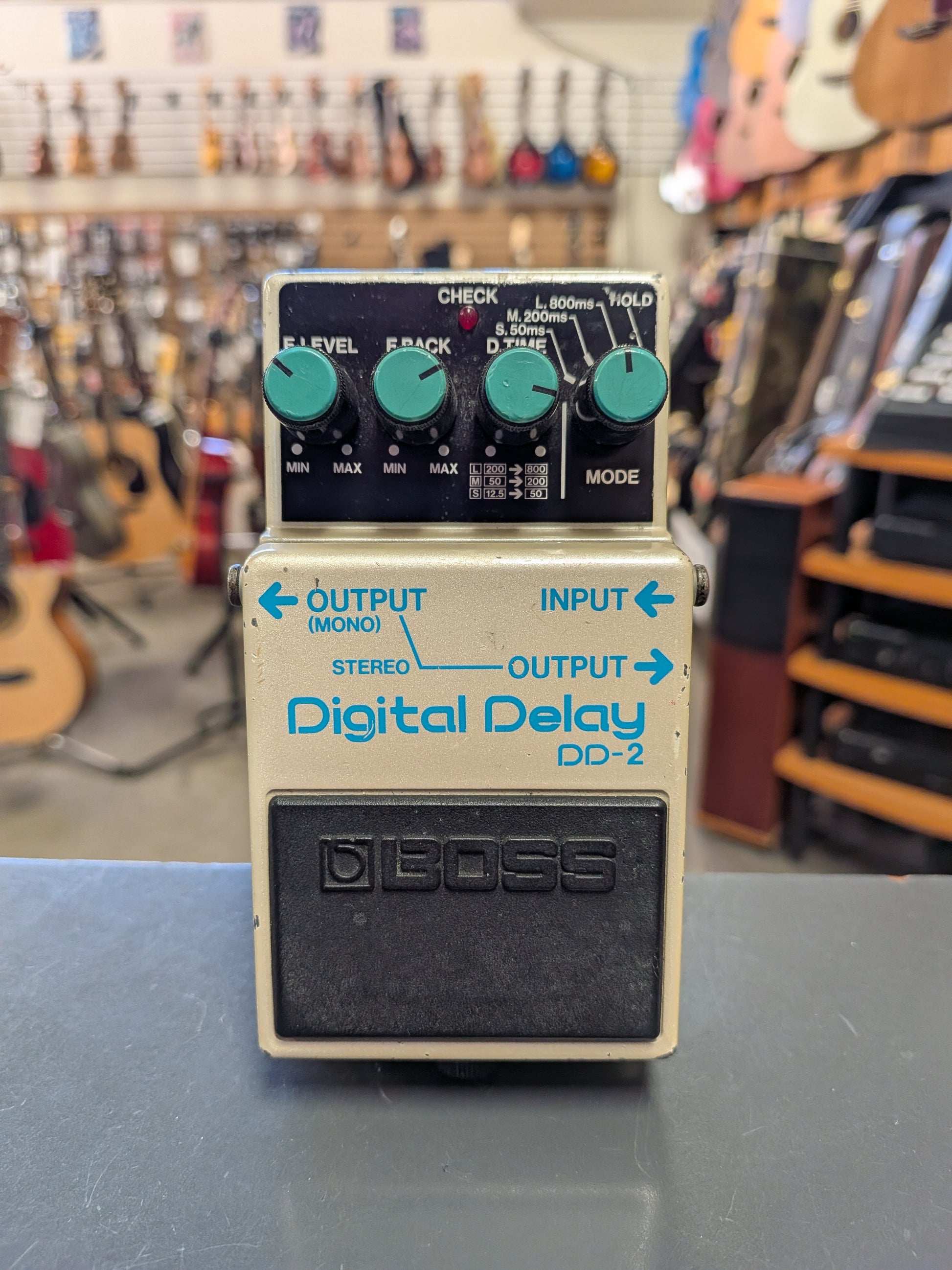

The mode select switch can be used to choose three different delay ranged. The S range is from 12.5 to 50 ms, the M range is from 50 to 200 ms and the L range is from 200 to 800 ms. Delay time of each range is controlled by the D. Time control. The balance the direct sound and the delay sound can be set by the E. Level control and the number of repeats can be adjusted by the F. Back control. There are two separate output jacks which make it possible to produce stereo effects. A hold function allows the hold time and can be adjusted between 200 ms and 800 ms by the D. Time control when the mode select switch is set to the hold mode. The effect pedal can be used to turn the hold function on and off.

Like other similar BOSS products, the DD-2 features FET silent switching, and an LED on/off and battery condition indicator."
