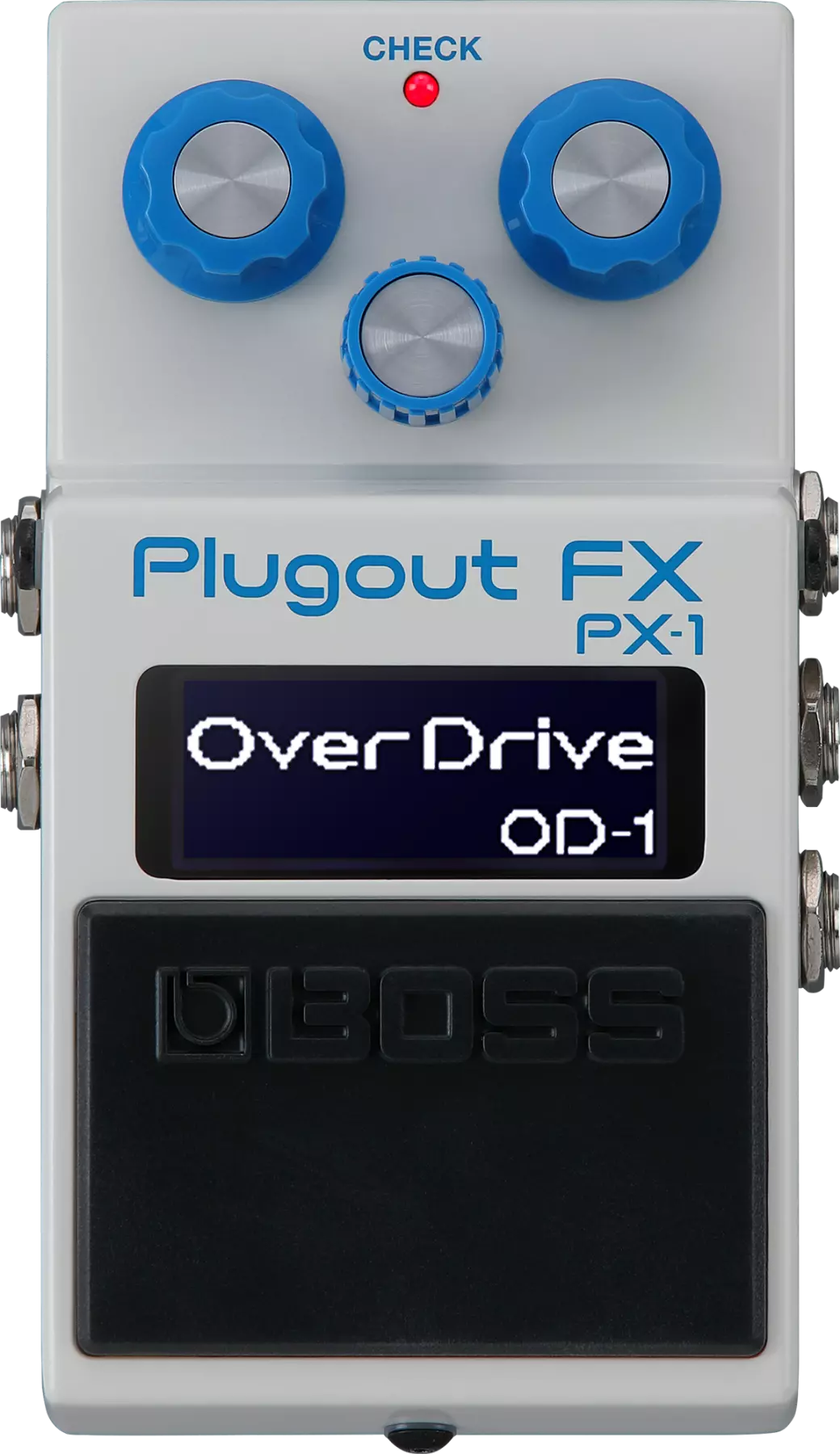

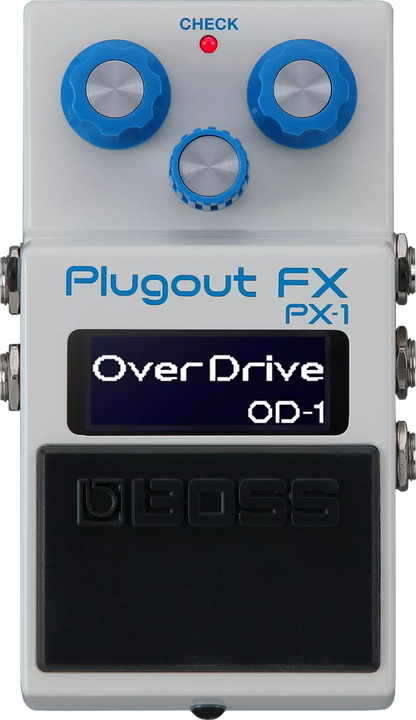

Boss PX-1 Plugout FX Pedal

The PX-1 Plugout FX marks a leap forward in BOSS compact pedal design. An apex of authentic hardware modelling, this next-generation stompbox delivers stunning recreations of timeless effects spanning BOSS history. Built for players seeking a brand-new tonal experience, the PX-1 ships with eight effects pre-installed, plus access to another eight using the free BOSS Effect Loader smartphone app. From rare gems to all-time classics, an ever-growing library of cutting-edge algorithms represents decades of BOSS innovation.

Features

• Iconic BOSS compact pedal format with familiar BOSS style knobs and jacks

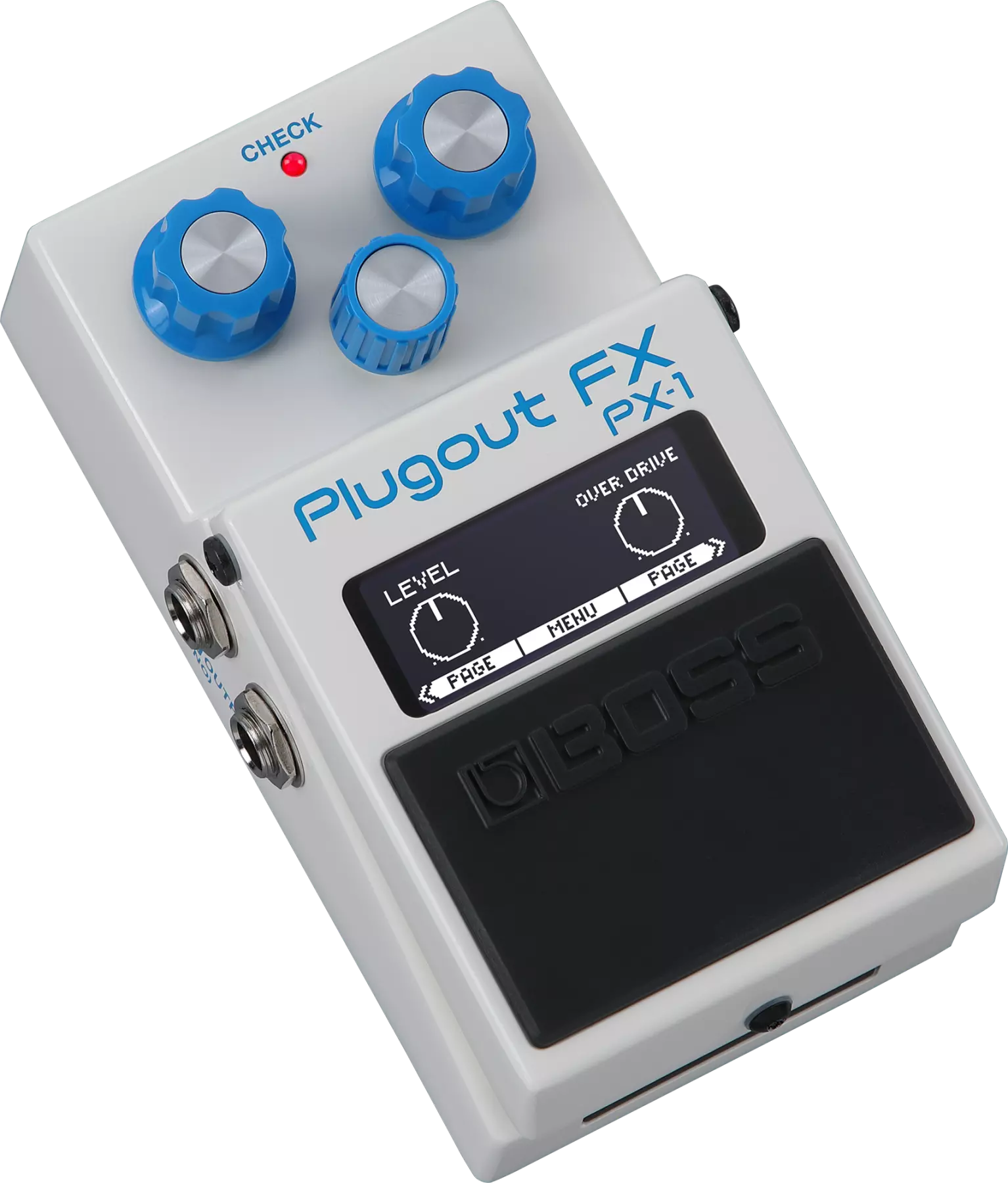

• The PX-1 features a wide LCD that shows the active effect algorithm, parameter controls, and menu options.
• Control knobs conveniently double as push encoders for speedy menu navigation
• New effects can be added using the intuitive BOSS Effect Loader app (iOS/Android)
• CTL 1, 2/EXP jack allows users to switch between two effects and control parameters
• USB-C port supports power, software updates, and direct app connection
• MIDI IN jack for MIDI clock tempo sync with time-based effects like delay

Specifications

General
- Sampling Frequency: 48 kHz
- DA Conversion: 32 bits
- Nominal Input Level: INPUT A (MONO), INPUT B: -20 dBu
- Maximum Input Level: INPUT A (MONO), INPUT B: +7 dBu
- Input Impedance: INPUT A (MONO), INPUT B: 1 MΩ
- Nominal Output Level: OUTPUT A (MONO), OUTPUT B: -20 dBu
- Maximum Output Level: OUTPUT A (MONO), OUTPUT B: +7 dBu
- Output Impedance: OUTPUT A (MONO), OUTPUT B: 1 kΩ
- Recommended Load Impedance: OUTPUT A (MONO), OUTPUT B: 10 kΩ or greater
- Bypass: Buffered bypass

Controls
- LEFT knob
- CENTER knob
- RIGHT knob
- Pedal switch

Indicator
- CHECK indicator

Display
- Graphic LCD 128 x 48 dots

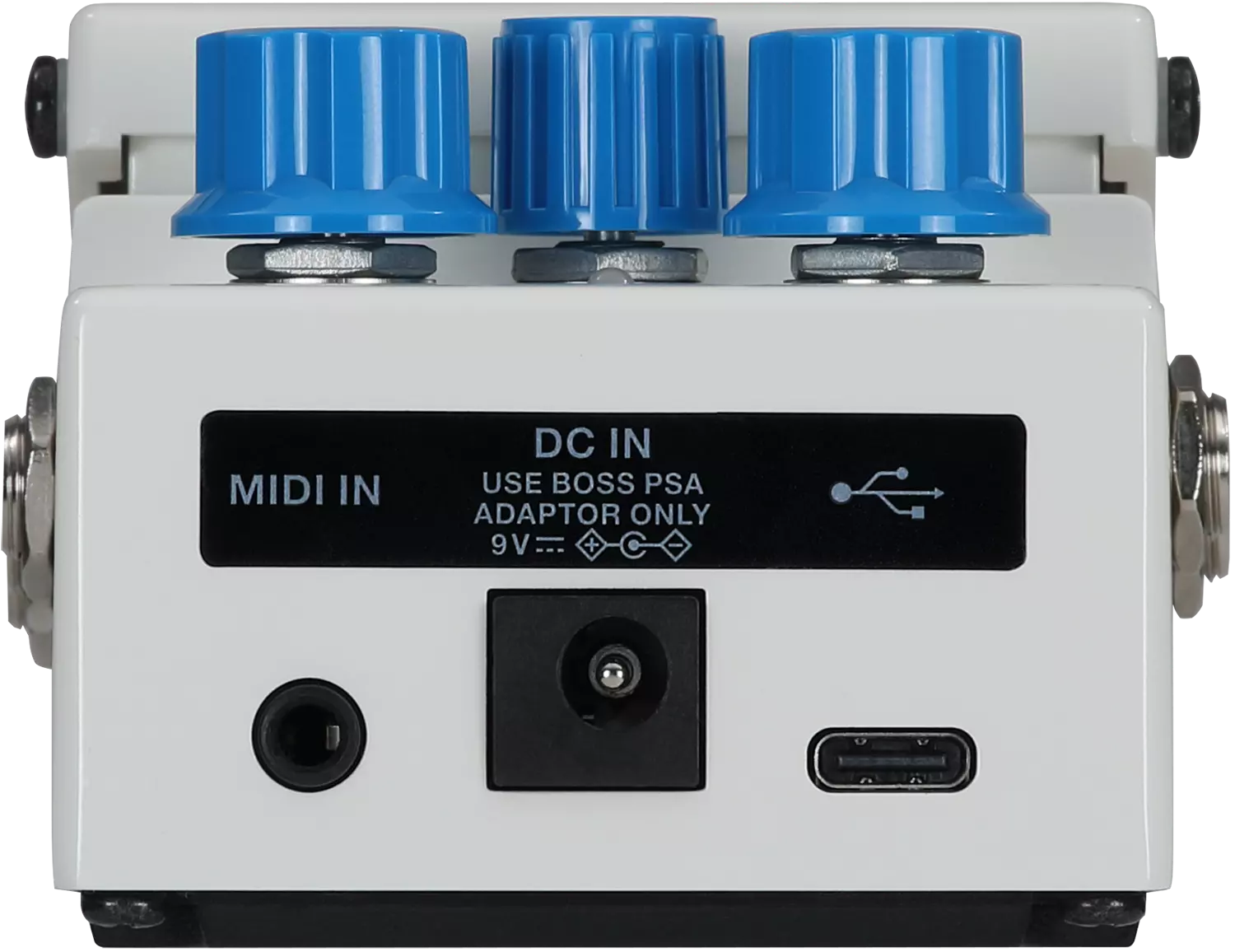

Connectors

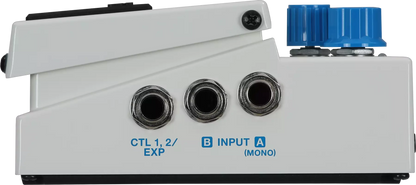

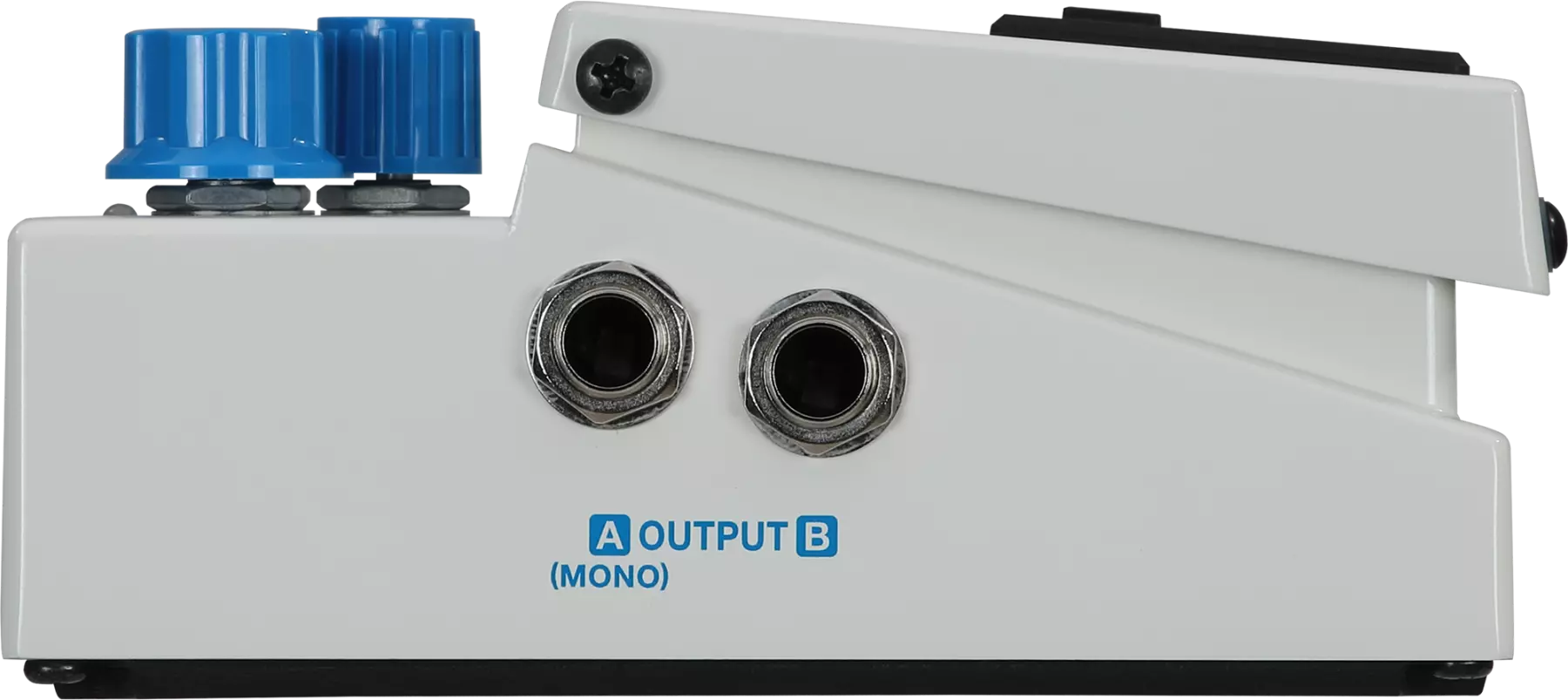

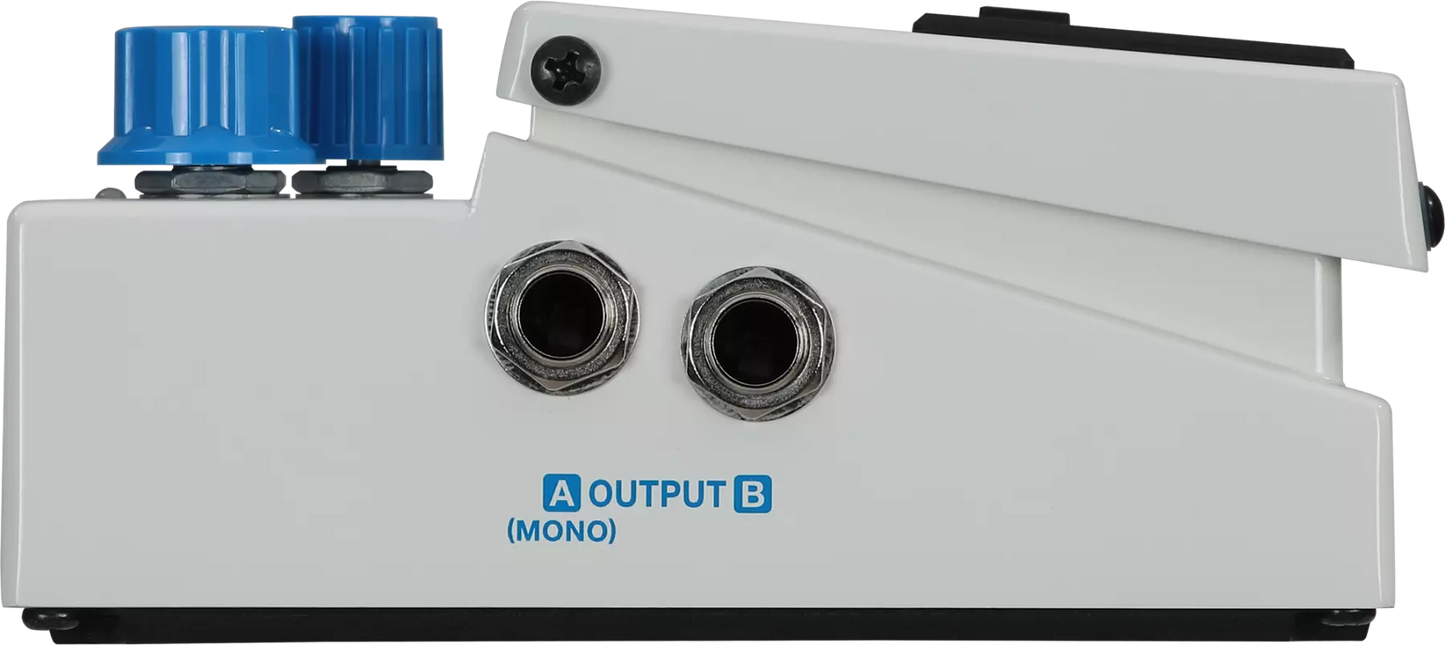

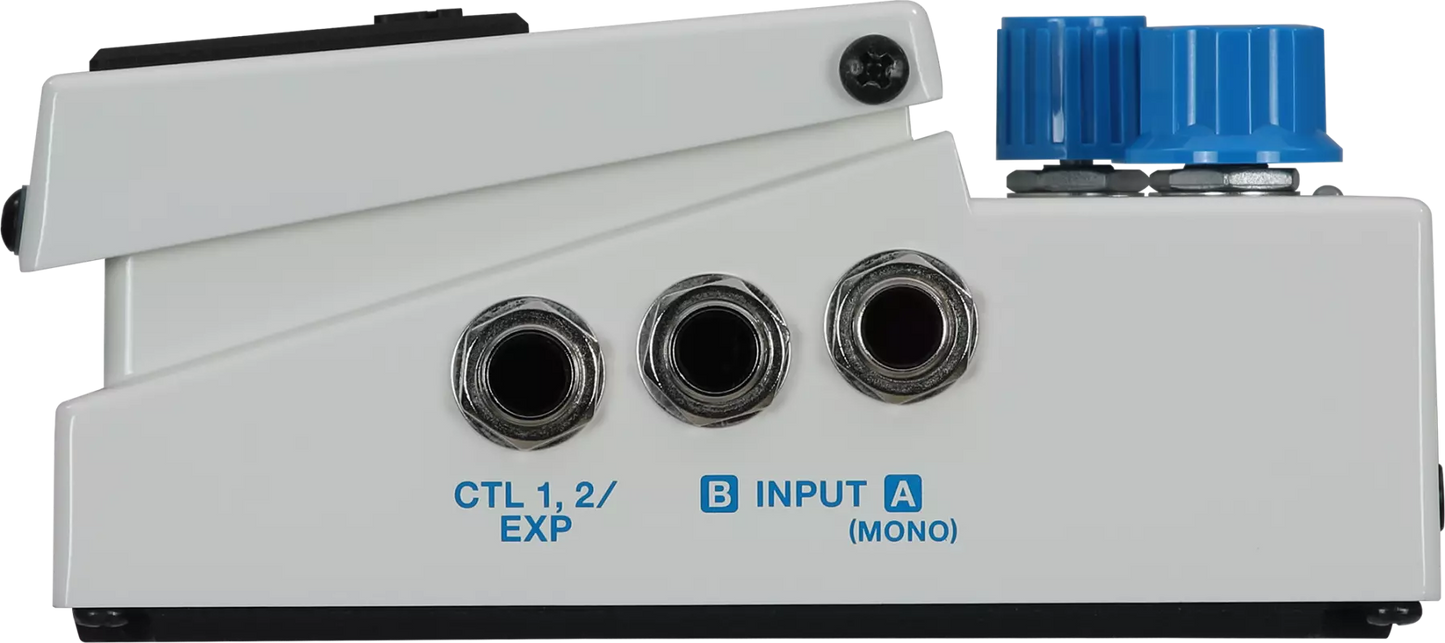

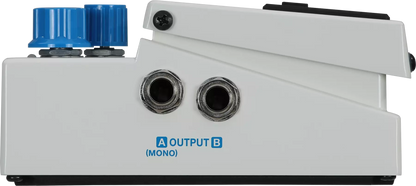

- INPUT A (MONO) jack, INPUT B jack, OUTPUT A (MONO) jack, OUTPUT B jack: 1/4-inch phone type
- CTL1,2/EXP jack: 1/4-inch TRS phone type

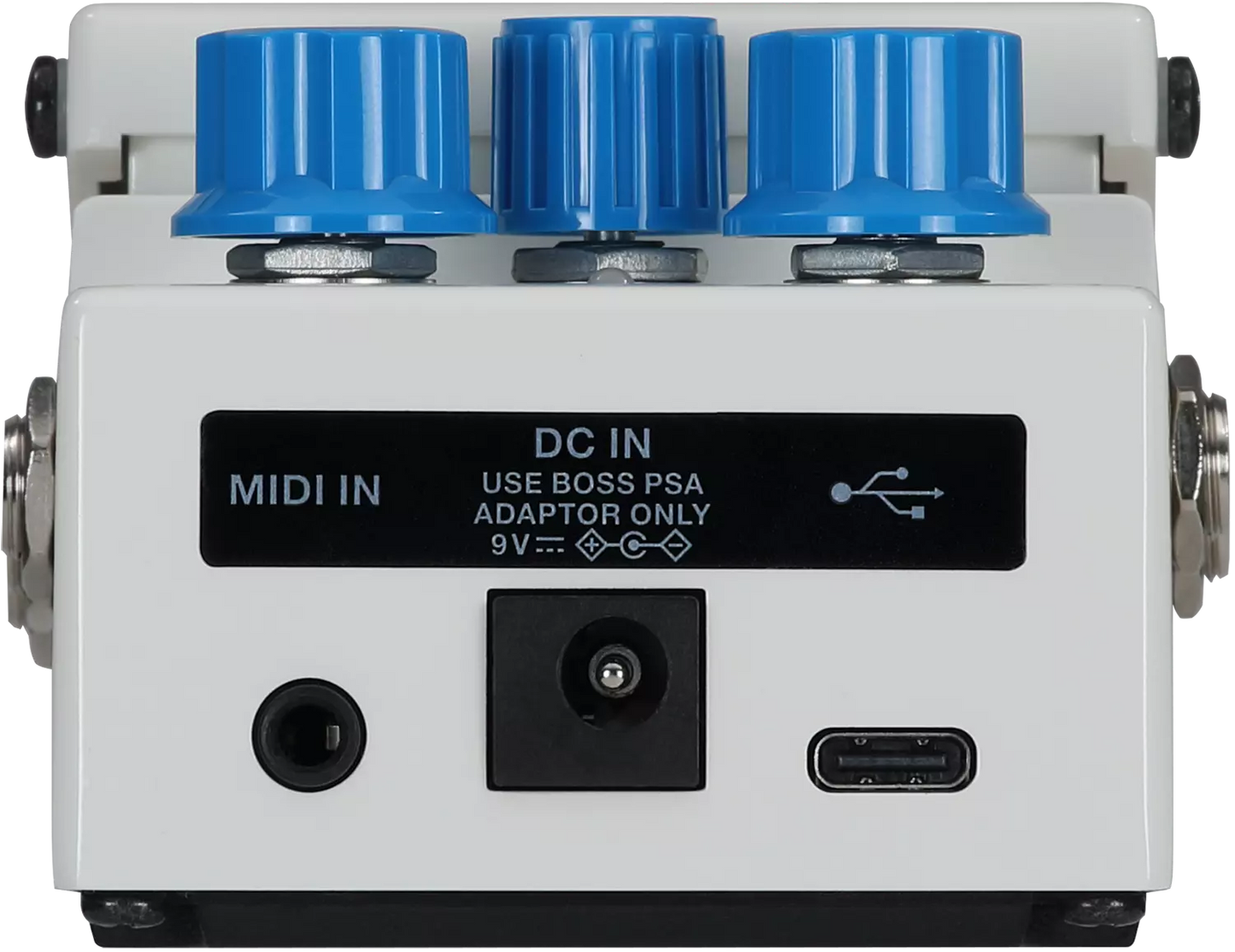

- DC IN jack
- MIDI IN jack: Stereo miniature phone type
- USB COMPUTER port: USB Type-C(R)

Bluetooth
- Profile Support: GATT (MIDI over Bluetooth Low Energy)

Power Supply
- AC adaptor
- Supplied from the USB port

Current Draw
- 260 mA (AC adaptor)
- 420 mA (USB)

Dimensions
- 73 x 125 x 56 mm (2-7/8 x 4-15/16 x 2-1/4")

Weight (excluding AC adaptor)
- 400 g (15 oz)

Accessories
- AC adaptor
- Leaflet ("USING THE UNIT SAFELY," "IMPORTANT NOTES," and "Information")
- Roland Cloud Activation Card
