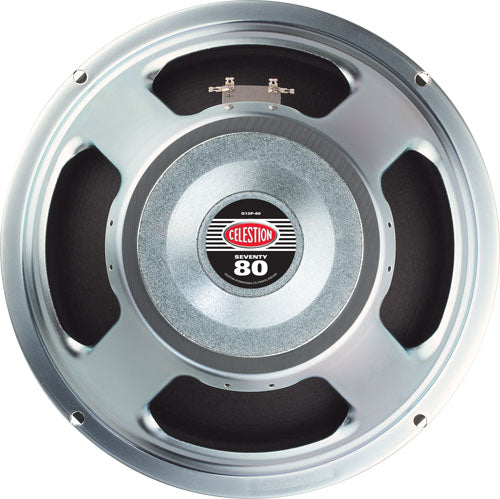

Celestion Seventy 80 Guitar Speaker - 12" 8 Ohms
Celestion Seventy 80 Guitar Speaker - 12" 8 Ohms
Regular price
$150.00 CAD
Regular price
Sale price
$150.00 CAD
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
One of Celestion's best sellers, this speaker meets the expanded frequency range often requested by the new generation of amp manufacturers.
The Seventy 80 is detailed and crisply defined, with a tightly controlled low-end and punchy, aggressive upper mid-range. The top-end response is also subtly increased. Used singly, in pairs or quartets- it is a capable of reproducing a wide range of sounds and styles whilst adding the undeniable Celestion character to any amp.
General Specifications
Nominal diameter
12", 305mm
Power rating
80Wrms
Nominal impedance
8Ω
Sensitivity
98dB
Chassis type
Pressed steel
Voice coil diameter
1.75", 44.5mm
Voice coil material
Round copper
Magnet type
Ceramic
Magnet weight
31oz, 0.88kg
Frequency range
80-5000Hz
Resonance frequency, Fs
85Hz
DC resistance, Re
6.1Ω
Mounting Information
Cut-out diameter
11.1", 283mm
Diameter
12.2", 309mm
Magnet structure diameter
5.3", 134mm
Mounting slot dimensions
0.31", 7.9mm Ø
Mounting slot PCD
11.7", 297mm
Number of mounting slots
4
Overall depth
4.7", 119mm
Unit weight
6.8lb, 3.1kg
