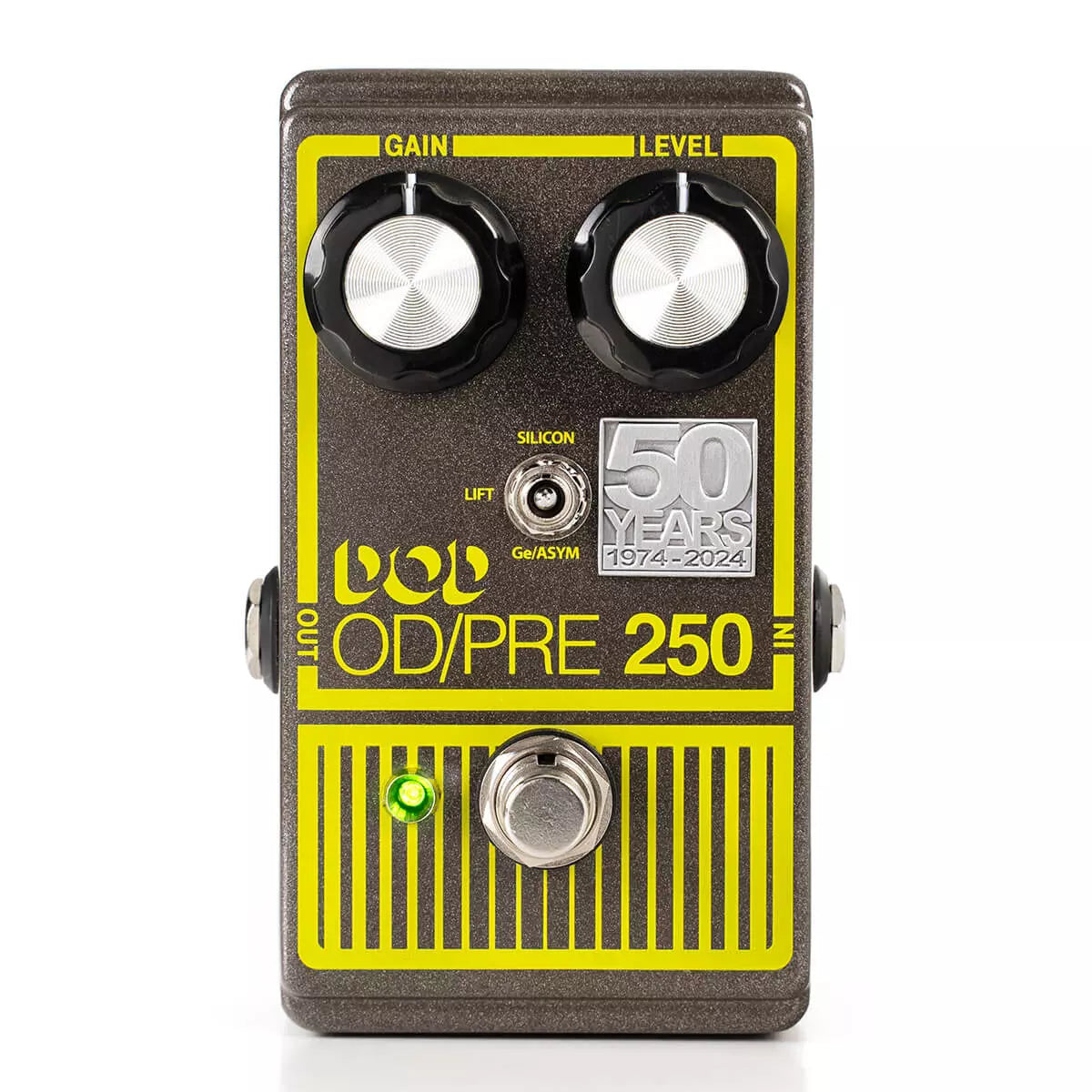

DOD 50th Anniversary Overdrive/Preamp 250 Pedal

The Overdrive Preamp 250 - 50th Anniversary Edition pedal celebrates the introduction of the original 250 pedal in 1974. Widely considered to be one of the most influential overdrive pedals, the original 250 helped shape the sound of rock and metal in the late '70s and early '80s. The Overdrive Preamp 250 - 50th Anniversary Edition pedal is hand-built in the USA using the authentic design of the original pedal, while adding two extra modes for modern sonic versatility.

The Overdrive Preamp 250 - 50th Anniversary Edition is actually three overdrive pedals in one. Set it to Silicon mode for a faithful reproduction of the original 250's bite and grind, courtesy of an authentic LM741 op-amp. Select Ge/ASYM mode to engage a Germanium diode for asymmetrical even-order clipping that provides a distinct tonal character with incredible touch response. Or switch to Lift mode to remove diode clipping completely from the signal path, for use as a clean boost and preamp.

Complete with a commemorative 50th Anniversary badge, custom artwork and colour-matched LED, and a 50th Anniversary pedal topper, the Overdrive Preamp 250 - 50th Anniversary Edition pedal is ideal for players and collectors alike.

Features

• 3 Overdrives in One - vintage-authentic SILICON clipping, Ge/ASYM Germanium asymmetrical clipping, or LIFT for no diode clipping
• Mod-Friendly design - Hand-built with through-hole components for easier modding
• Gain Control - Control the amount of overdrive, from subtle grit to full distortion
• Level Control - Match to your amp's volume, or crank it up to boost leads and solos
• Bright LED indicator - Great modern addition to a classic design

In the Box

1 x DOD Overdrive Preamp 250 - 50th Anniversary Edition
1 x 50th Anniversary Pedal Topper w/Hex Wrench
1 x Serialized Certificate of Authenticity
4 x Stickers
4 x Guitar Picks
Full-colour owner's Manual

Specifications

Input: 1/4" Instrument Phone Jack
Input Impedance: > 300kΩ typical
Output: 1/4" Instrument Phone Jack
Output Impedance: 9.1kΩ - 27.5kΩ (based on Level control position)
Gain: +9.5 dB to +46.7 dB
Power Input: 2.1mm DC Barrel Jack, center (tip) negative
Chassis: Aluminum
Power Supply: 9V Alkaline Battery; Other well-regulated 9V center (tip) negative supply; +18 V tolerant
Consumption: 7 mA typical
Dimensions (L x W x H): 4.68" x 2.63" x 2.25" (Jack W = 2.92")
