Eminence

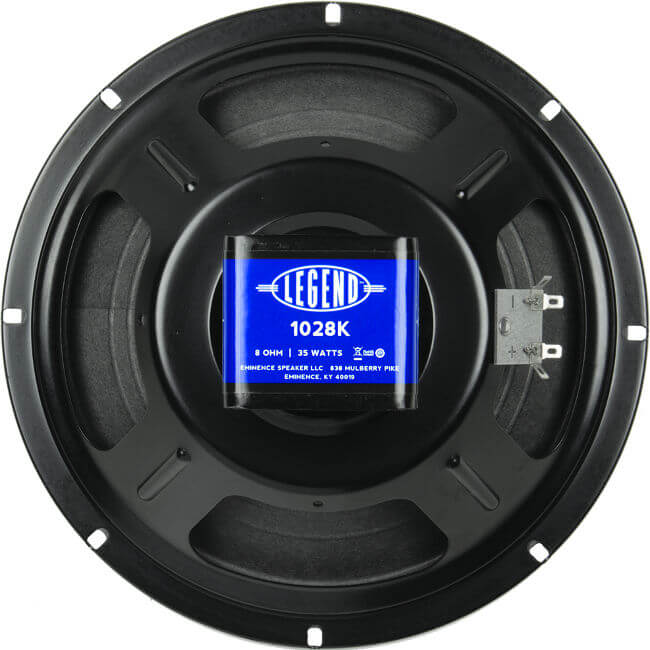

Eminence Legend 1028K - 10" - 8ohm - 35 Watts

Eminence Legend 1028K - 10" - 8ohm - 35 Watts

Regular price $187.99 CAD
Regular price Sale price $187.99 CAD
Sale Sold out
Shipping calculated at checkout.

Vintage alnico magnet and seamed cone tonality for guitar. Ideal vintage alnico Jensen replacement.

Colouration: A very bluesy speaker with lots of sparkle, definition, and percussive characteristics.
Genre: Blues, Country, Rock.

SPECIFICATIONS
Nominal Diameter: 10", 254 mm
Nominal Impedance: 8 ohms
Power: 35w rms
Freq. Response: 100 Hz- 5.5 kHz
Sensitivity: 97.4 db 1w/1m
Magnet Weight: 6 oz, 170 grams
Gap Height 0.25", 6.2 mm
Voice Coil Diameter 1.0", 25.4 mm

MOUNTING INFORMATION
Acceptable Enclosure Types
- Closed back: Yes
- Open back: Yes
Overall Diameter: 10.11", 256.8 mm
Baffle Hole Diameter: 9.05", 229.7 mm
Number of Mounting Holes: 8
Mounting Holes Diameter: 0.2", 5.6 mm
Mounting Hole BCD: 9.6", 243.8 mm
Depth: 4.8", 122 mm
Net Weight: 2.9 lbs, 1.3 kg
Shipping Weight: 4.0 lbs, 1.8 kg
T/S PARAMETERS
Fs: 95 Hz
Re: 5.8 ohms
Le: 0.51 mH
Qms: 17.96
Qes: 1.61
Qts: 1.47
Vas: 31.5 L, 1.1 cuft
Vd: 72 cc
Cms: 0.19 mm/N
BL: 5.7 Tm
Mms: 15 grams
EBP: 59
Xmax: 2.1 mm
Sd: 344.9 cm2
Xlim: N/A

CONSTRUCTION
-Copper voice coil on polyimide voice coil former
-Alnico magnet with non-vented core
-Pressed steel basket
-Paper cone with plain paper edge
-Solid composition felt dust cap
