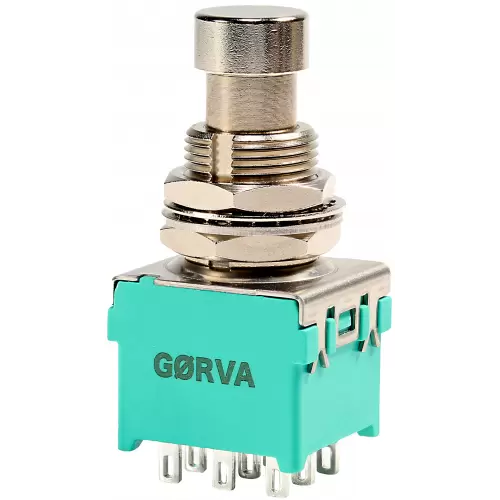

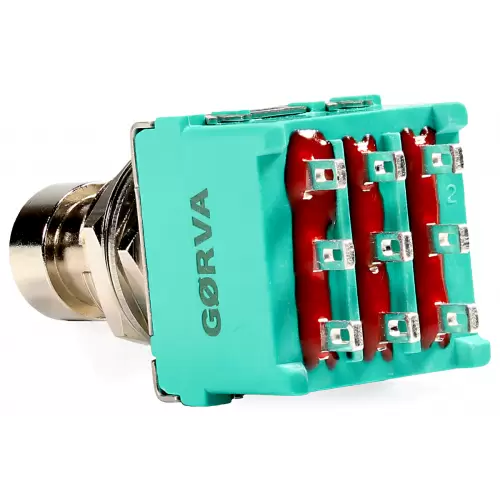

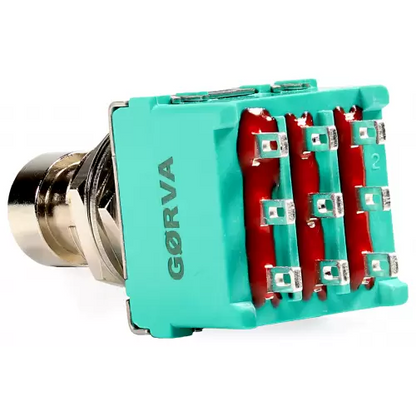

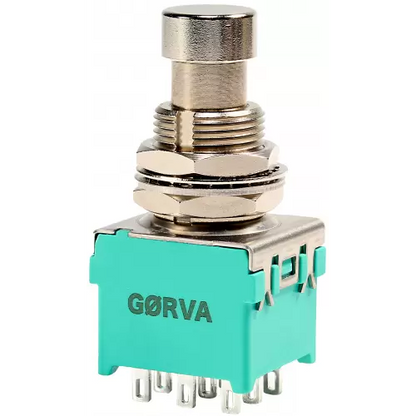

Gorva Mechano 3PDT Soft Click Footswitch

The Gorva Mechano is a premium 3PDT soft-touch latching footswitch. Gorva Designs have quickly established themselves as a high quality pedal parts company with their enclosures and the Mechano switches are no exception. With a life rating of 30,000 cycles, these switches outperform most stompbox switches.

Features:

• 3PDT latching stomp switch
• Soft touch actuation with a force of 1.0±0.3Kgf
• Green Case
• RoHS & Lead-free

Measurements

Actuator Shaft Length: 5 mm
Actuator Top Diameter: 10 mm
Actuator Top Height: 5 mm
Body Height: 16.7 mm
Body Length: 19.6 mm
Body Width: 17 mm
Bushing Keyway: 2 mm
Bushing Length: 11.5 mm
Bushing Thread: M12*P0.75
Contact Resistance: Typically 10 mΩ (30 mΩ Max)
Dielectric Strength: 500 V RMS @ Sea Level
Electrical Life: 30,000 Cycles
Insulation Resistance: DC 500 V 100 MΩ Minimum
Operating Force: 1.0±0.3Kgf
Operating Temperature: -10 °C ~ +70 °C
Panel Mount Cutout: 12.5 mm
Power Rating: 9 VDC, 1 A
Solder Lug Length: 3.2 mm
Solder Lug Spacing Length: 5.3 mm
Solder Lug Spacing Width: 4.8 mm
Solder Lug Thickness: 0.75 mm
Solder Lug Width: 2 mm
