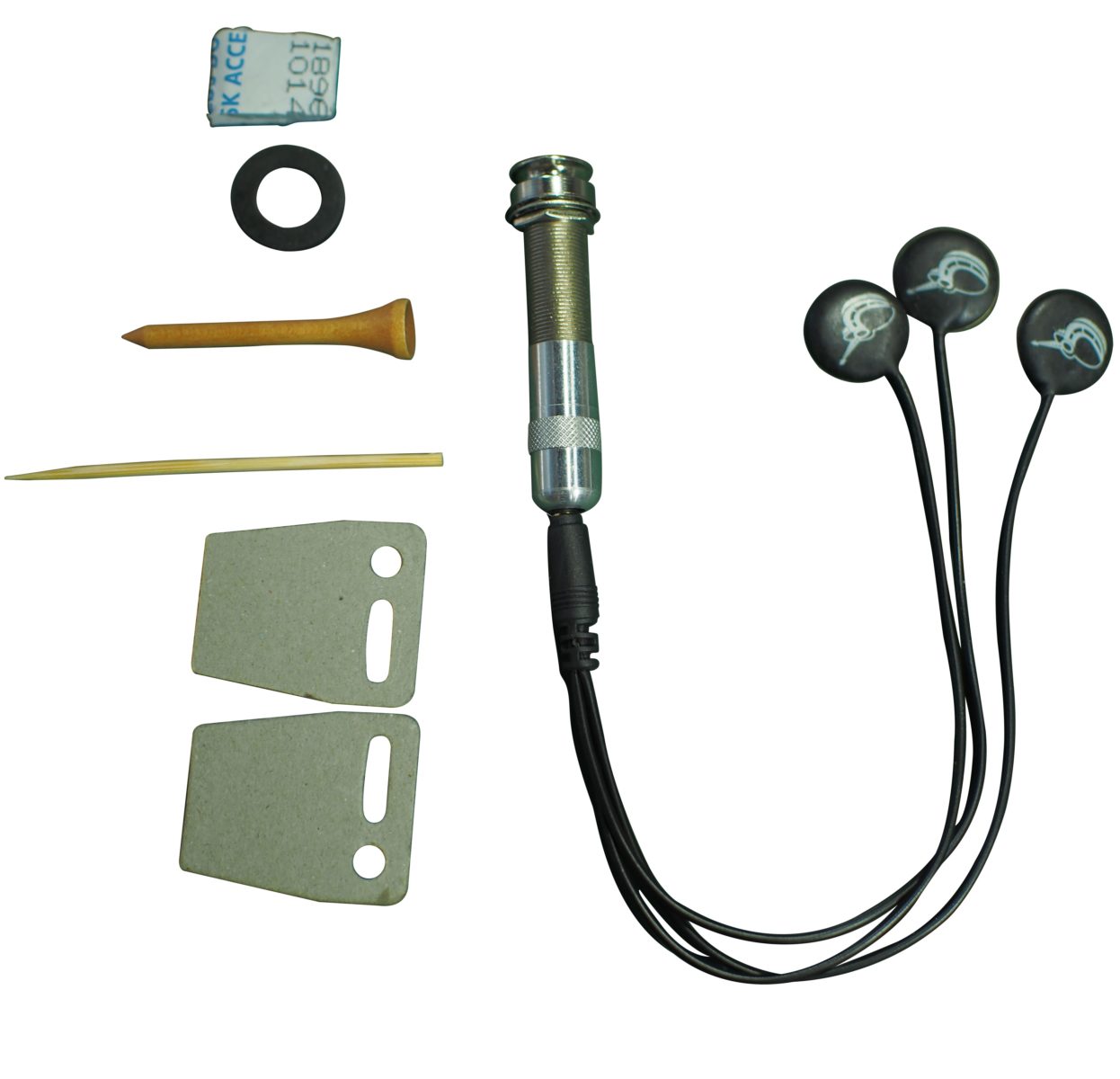

JourneyTek EP001K Passive 3-Piezo Pickup

JourneyTek EP001K Passive 3-Piezo Pickup

Regular price $69.99 CAD
Regular price Sale price $69.99 CAD
Sale Sold out
Shipping calculated at checkout.

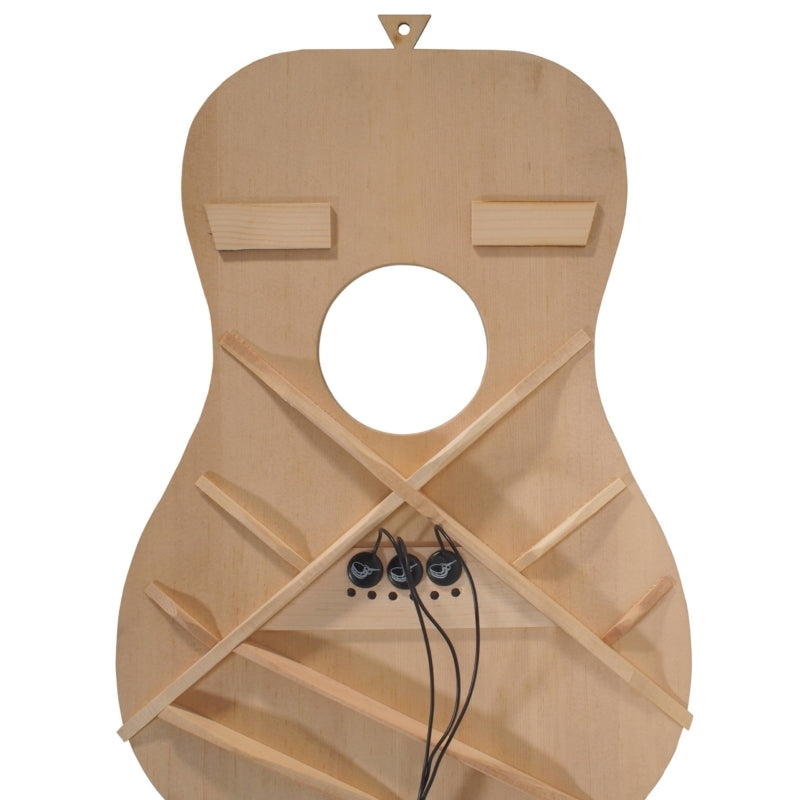

The EP-001K Passive piezo pickup is an elegant pickup solution for transparent tone to amplify the natural sound of your acoustic guitar. Installation requires no modification to your guitar apart from drilling the endpin jack hole and gluing the elements to the bridge plate. This new model can be upgraded without the use of tools to our new active stereo pickup that features a gooseneck microphone and these discrete sound hole controls: Master Volume, Balance, Bass, Treble, Phase. (Note: If installing on a guitar with narrow x-bracing under the saddle, such as a Martin Jr or Taylor GS Mini, one or more of the piezos may hang off of the edge slightly)

General Specs and Details:

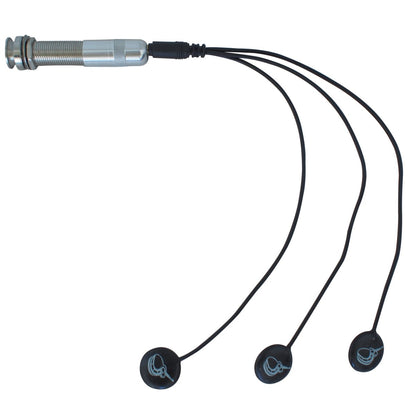

  • 3 balanced German-made ceramic piezo elements – 20mm diameter
  • Standard 1/4 inch (6.3mm) mono output jack
    • 2.5mm mono input jack from piezo elements
  • no batteries needed
  • length of wire from peizo element to pickup jack: 22cm
  • frequency response 22Hz-18kHz
    • EADGBE guitar frequency range is E2 (82 Hz) to F6 (1,397 Hz)
  • impedance under 1 MΩ
