JourneyTek EP001KM Passive 3-Piezo Pickup - 12mm Sensors

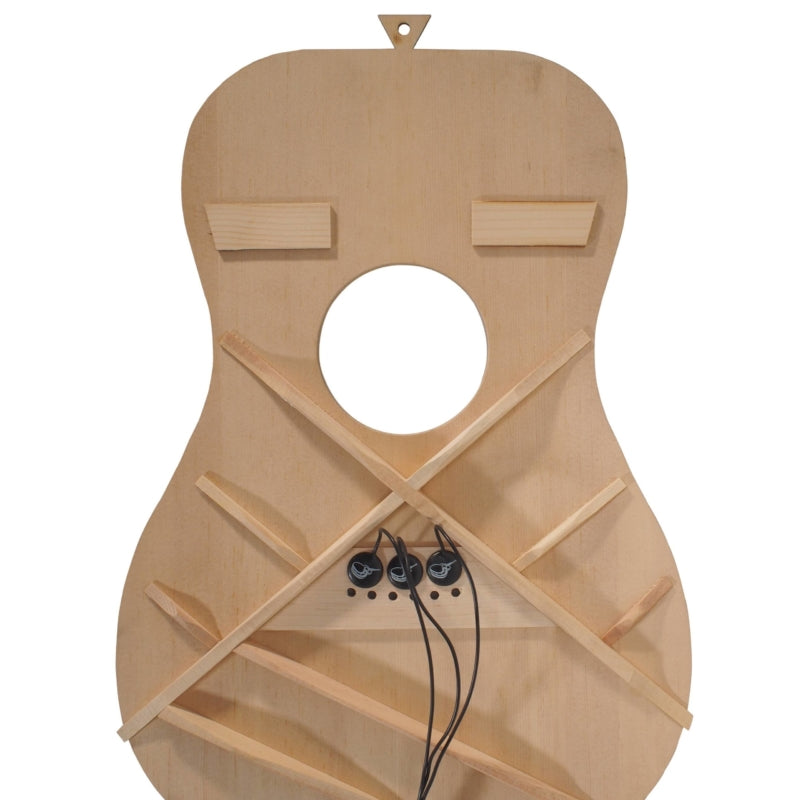

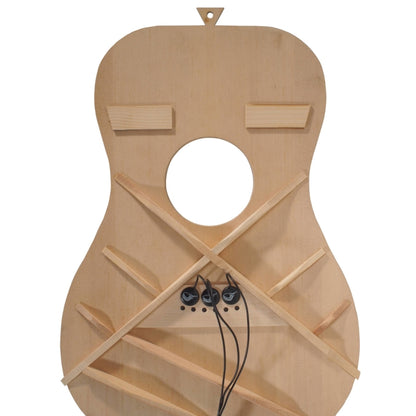

The EP101KM Passive Piezo Pickup is an elegant pickup solution for transparent tone to amplify the natural sound of your acoustic guitar. Installation requires no modification to your guitar apart from drilling the endpin jack hole and gluing the elements to the bridge plate.

This model differs from our other pickups in that it has smaller 12mm piezo pickups for use on guitars with small bridge plates (Such as the Martin Jr. or Taylor GS Mini). If you have a vintage or higher end steel string guitar with a smaller bridge plate, this is the pickup you want in place of the EP001K.

General Specs and Details:

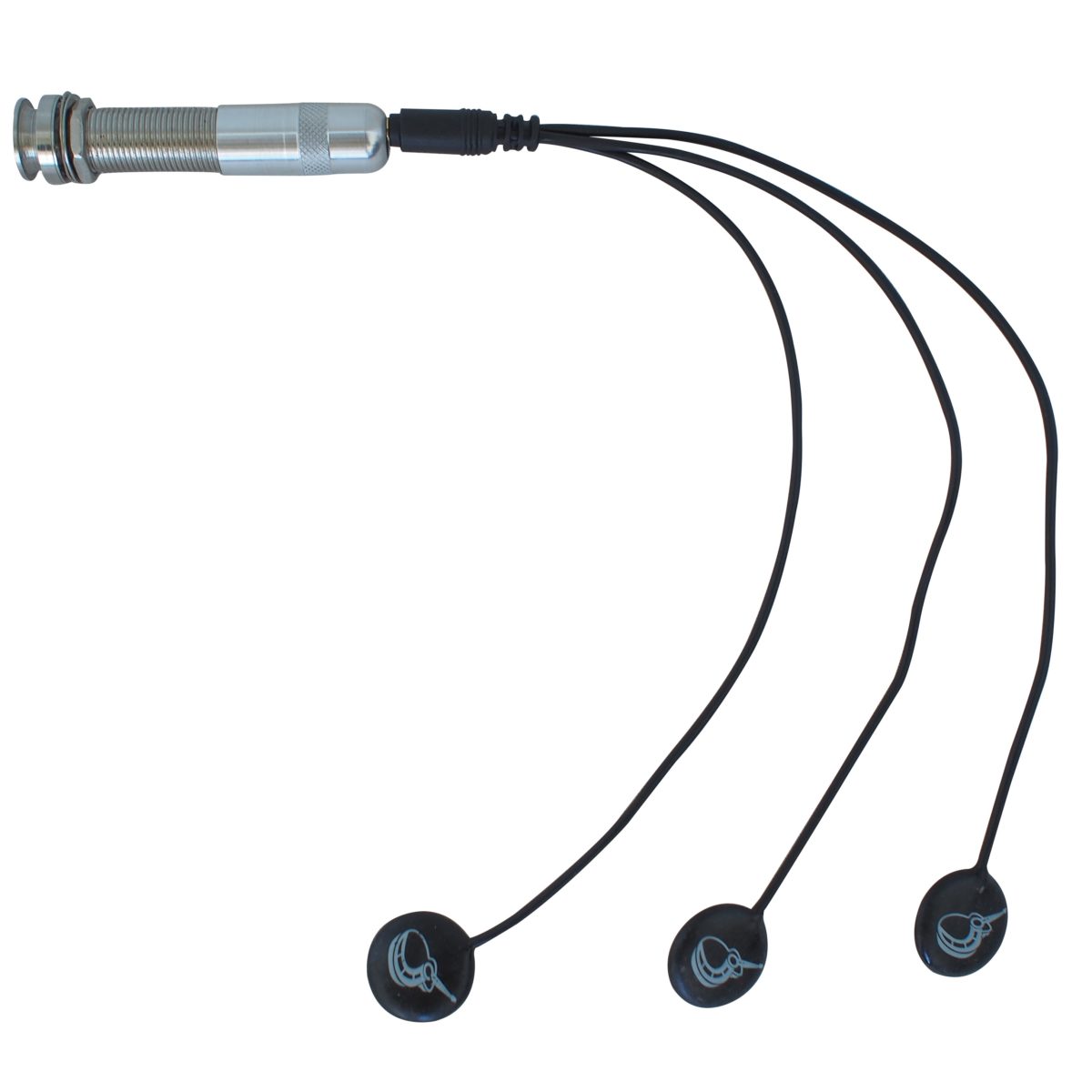

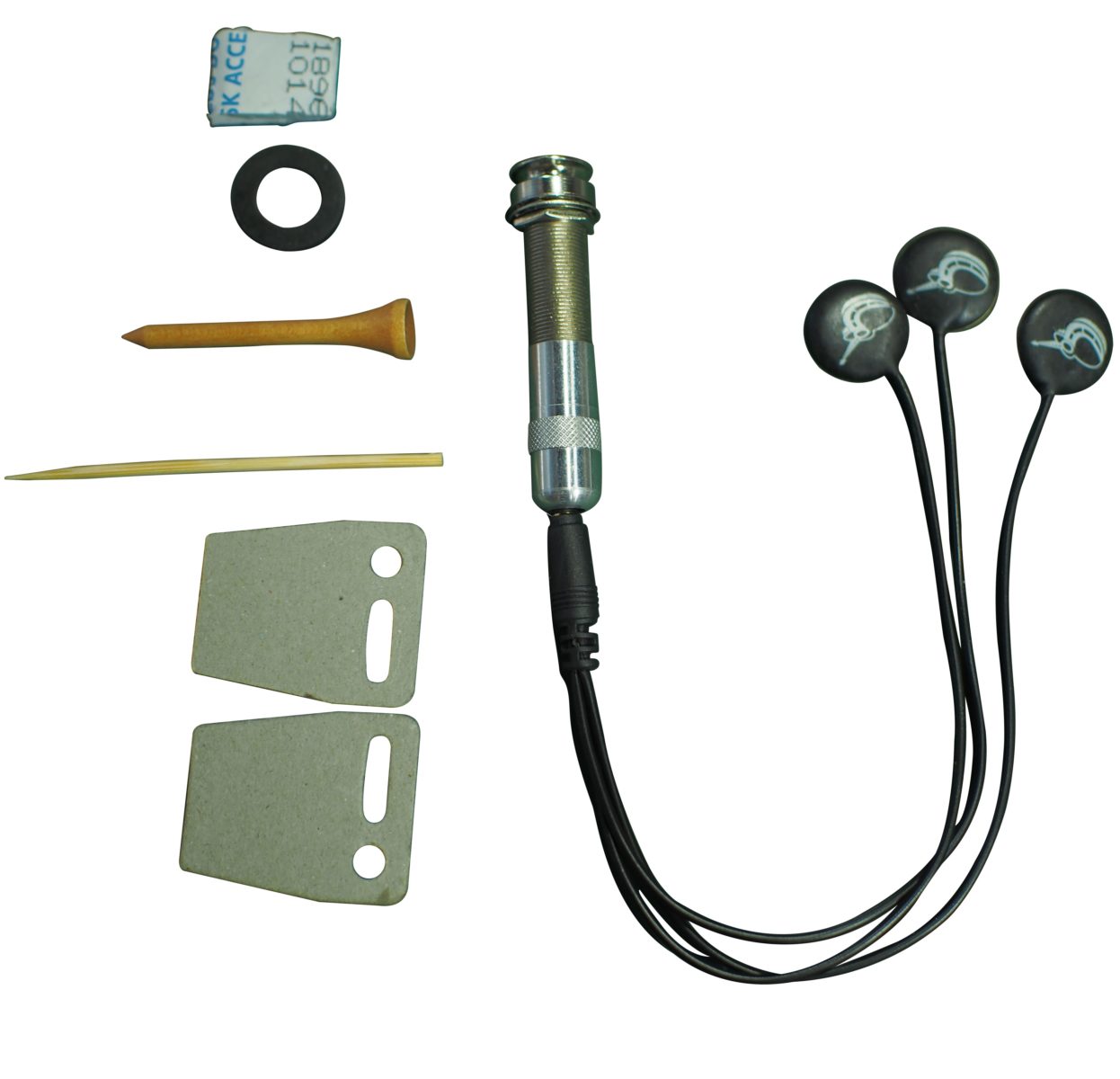

• 3 balanced German-made ceramic piezo elements – 12mm diameter

• Standard 1/4 inch (6.3mm) mono output jack
  • 2.5mm mono input jack from piezo elements
• no batteries needed
• length of wire from peizo element to pickup jack: 22cm
• frequency response 22Hz-18kHz
  • EADGBE guitar frequency range is E2 (82 Hz) to F6 (1,397 Hz)
• impedance under 1 MΩ
• Installation Guide Here: https://journeyinstruments.com/pickup-installation/

  • Strap Button Threads: 3/8-32 standard (if you need to replace the strap button)
  • Inner socket Threads: M12*0.75 metric (If you need to replace a nut for the pickup inner tube threads)
