Phil Jones Bass

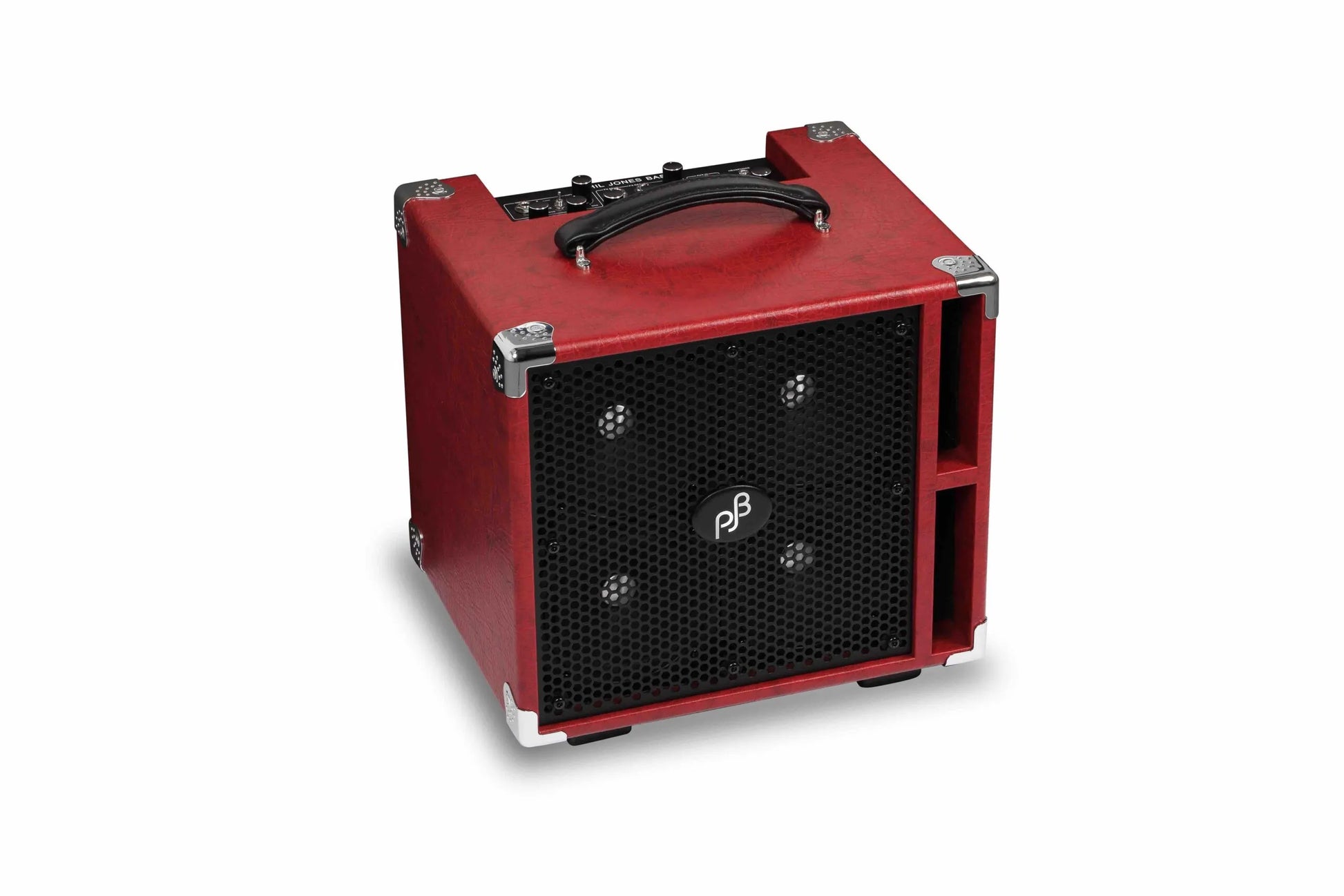

Phil Jones Compact PLUS BG-450 300w Bass Combo Amp - Red

Phil Jones Compact PLUS BG-450 300w Bass Combo Amp - Red

Regular price $1,699.99 CAD
Regular price Sale price $1,699.99 CAD
Sale Sold out
Shipping calculated at checkout.



The Compact Plus BG-450 is the pinnacle of PJB’s line of small and light weight powerful compact bass combos.  It is the same size as PJB’s C-4 speaker enclosure with a power amplifier that will reach up to 500 Watts with four internal 5” drivers.

The BG-450 contains the latest proprietary PJB chrome dome drivers which are the most efficient five-inch speakers ever engineered by PJB. The result is a perfect pairing of power and driver efficiency that makes it the best sounding 4×5 combo ever made by PJB and, remarkably, with less weight. It has an incredible punchy sound that cuts through air as “a knife through butter” with a solid and powerful low-end response normally associated with a much larger combo.

In the heart of this amp lies a formidable ultra-high-energy power supply using a Class D power amplifier for high efficiency which equals less heat and less weight, and is coupled with a pure Class-A, ultra-low noise pre amp. This combination completes a power section that achieves a massive dynamic range that allows the player to attain the best tone in any playing situation.

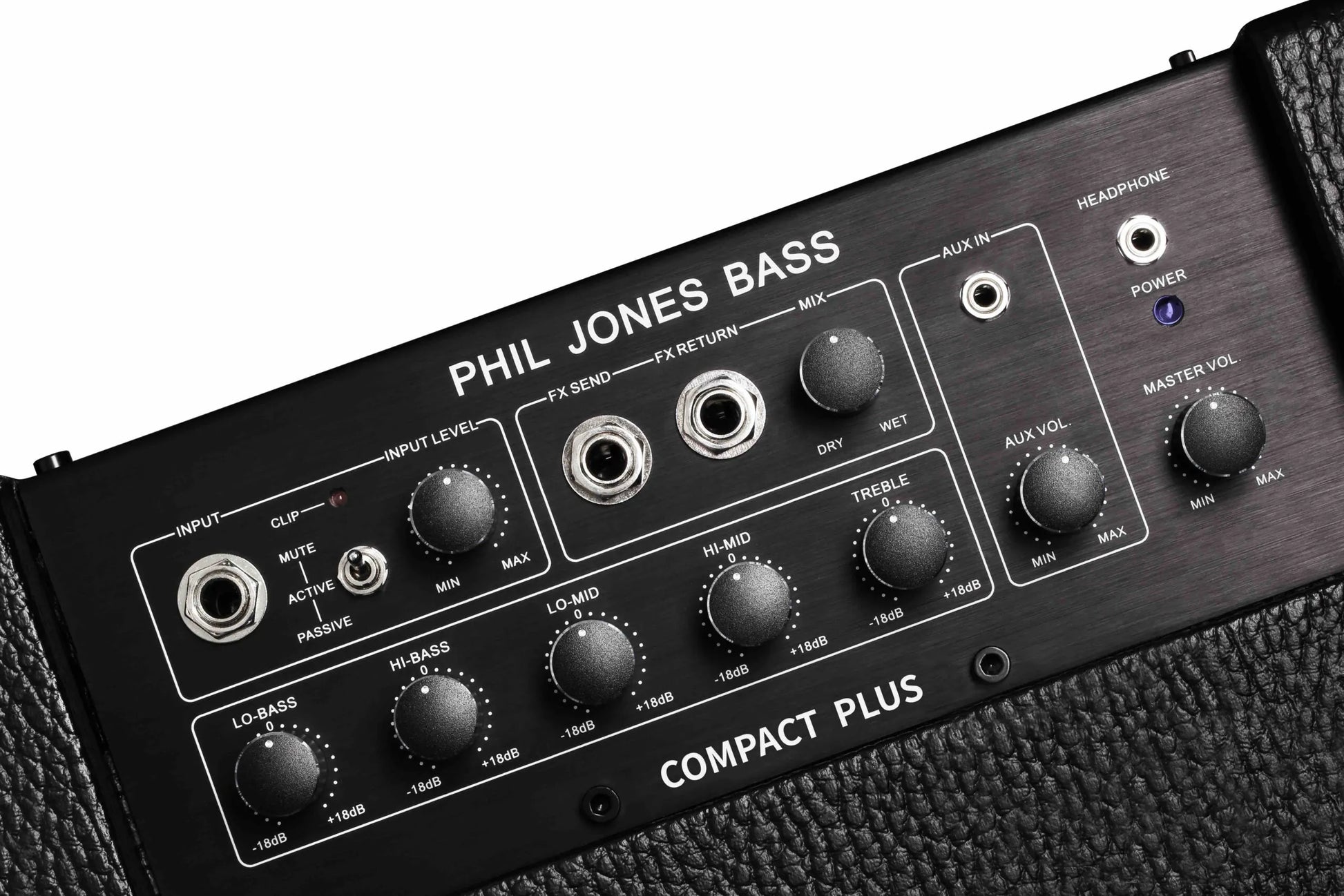

The pre-amp design includes a single channel equipped with a variable gain input section that matches precisely with both active and passive basses. It also features a mute switch and the classic PJB 5-band precision EQ system that achieves the broadest range in tones imaginable with just 5 controls. This allows the player to effortlessly locate their perfect tone within seconds.

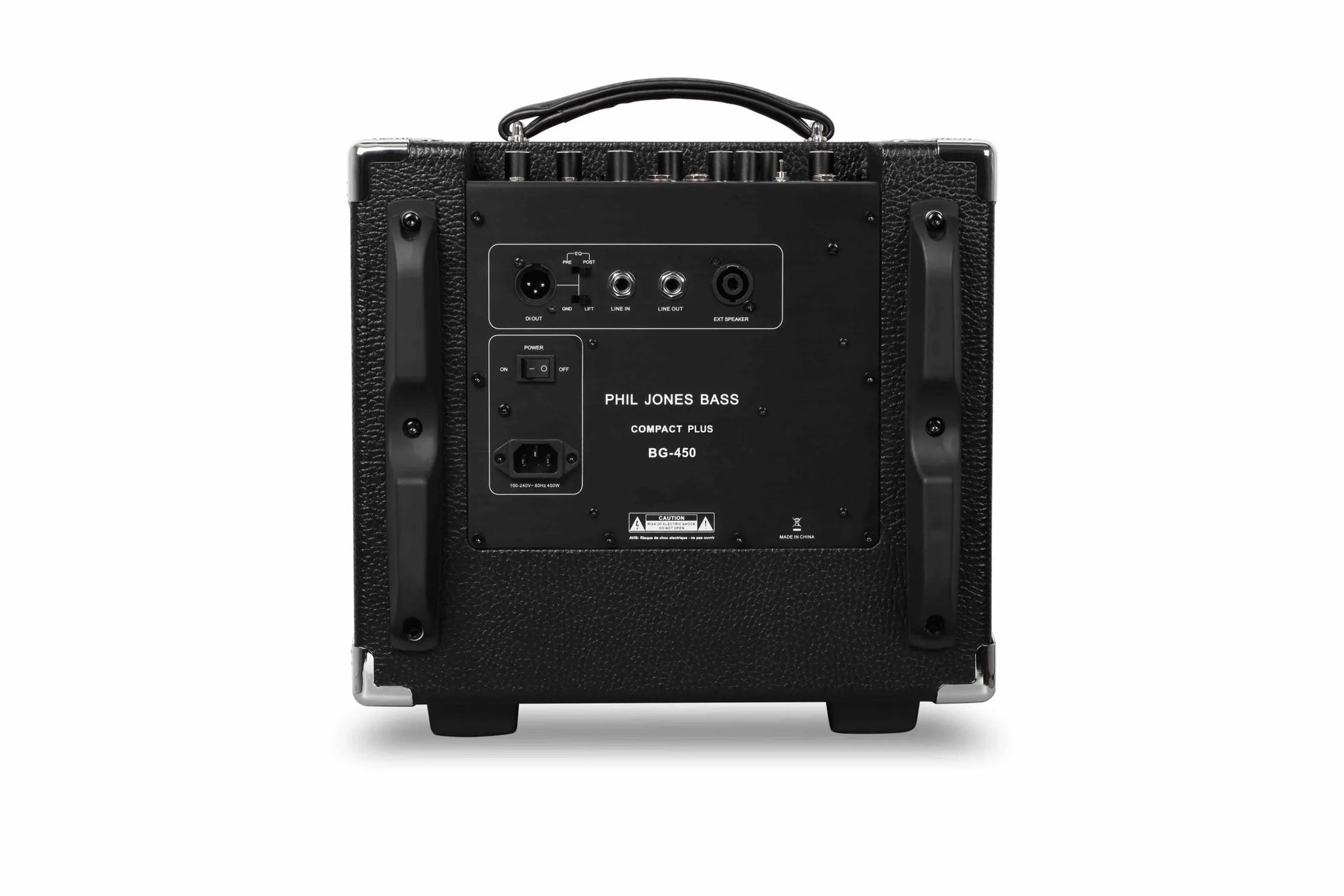

The send /return FX patch can be blended to the direct signal allowing even more tonal opportunities. A secondary AUX input allows for practicing along with backing tracks via a 1/8” stereo jack. Back panel features include a Line Output jack that allows the BG-450 to be used in slave mode coupled with one or multiple amps, and a line input that provides the ability for an external pre-amp to be connected if desired.

The DI balanced out can be pre or post EQ and offers a ground lift to avoid problematic hum. Speaker output is via a Speakon NL4 socket perfectly matched to run a C4 or C8 cabinet. The amp can run on any AC voltage from 100 volts to 240 volts.

The Compact Plus puts out a punchy 300 watts into its own speakers and up to 500 watts when connected to an external cabinet. The BG-450 at max power will cover a wide variety of playing situations. For environments that demand much higher volume PJB recommends a BP-800 amp with PJB cabinets, or a BG-800 Roadcase as powerful alternatives.

Speaker Driver: 4X5 Inch PJB Driver

Amplifier
A class D amplifier with digital switch-mode power supply.
Power output: 300W internal speakers, 500 Watts with 8ohm external speaker

Signal to Noise Ratio:≥85 dB(A) (EQ off, Volume on Full.)

Impedance
Passive Input: >2MΩ/22pF
Active Input: >100KΩ/22pF
Line Input: >22KΩ
Pre Amp Line Out: < 2KΩ
Bal. Out: <200Ω

Levels
Passive Input: 10mV-1.5V
Active Input: 20mV-4.5V
Line Input:600mV
Pre Amp Line Out: 1.2V
Bal.Out: Typical 500mV

EQ: CENTER FREQUENCIES
50Hz, 160Hz, 630Hz, 2.5KHz,12KHz at +/- 18dB
