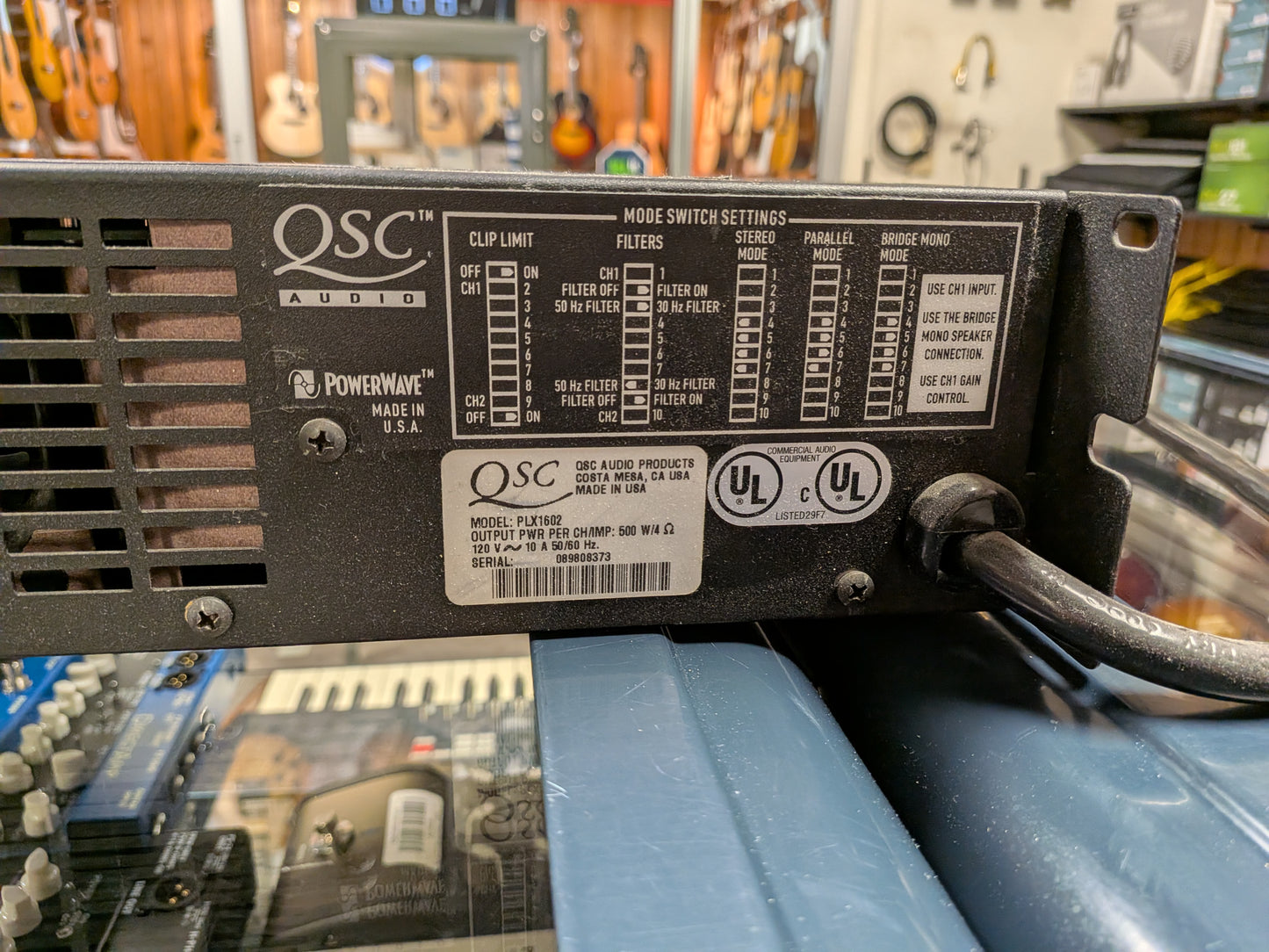

QSC PLX1602 1600w Power 2-Channel Power Amp (Used)

This unit is in good condition with some cosmetic wear. It has been fully tested and is 100% working as it should. The hardwired power cable is in good condition as well with no fraying.

From QSC

A line of amplifiers that defines high impact. Up to 3,400 watts in a 2 rack-unit chassis that's only 13 in. deep and 21 lbs. It includes the exclusive PowerWave Technology used in the award-winning PowerLight Series for chest-pounding bass and crystal-clear highs. It also features hum-free noise floor and ultra-low distortion of .03% THD. To keep the PLX Series running under the most demanding conditions, the Advanced Thermal Management System has been added.

PLX offers the reliability of a company that's been building professional amplifiers for over 30 years. With PowerWave technology, the PLX Series takes your music to a whole new level. Not only does it deliver bigger bass and cleaner highs, PowerWave also cuts wasted heat and boosts reliability. PowerWave is a switching power supply that provides ample current to the audio power circuitry by charging the supply rails 230,000 times a second through and ultra-low impedance circuit. So unlike other amps with conventional supplies, the audio signal is never starved prematurely and remains crisp and clean. It virtually eliminates hum and greatly reduces noise, providing a vast dynamic range that can handle any music without running out of headroom.

The Advanced Thermal Management system ensures the amps run cool and are reliable even under harsh conditions. Using a high-output variable speed fan, ATM pulls cool air from the rear of the amp and propels it through a heat shroud precision-fitted to flow air over the heat sinks and out of the amplifier.

• Watts Stereo Mode (both channels driven)
  8 ohms 20 Hz-20 kHz 0.03% THD 300W
  4 ohms 20 Hz-20 kHz 0.05% THD 500W
  2 ohms 1 kHz 1% THD 800W


• Watts Bridge Mono Mode
  16 ohms 20 Hz-20 kHz 0.01% THD:600W
  8 ohms 20 Hz-20 kHz 0.01% THD:1100W
  4 ohms 1 kHz 1% THD:1600W


• Noise (20 Hz-20 kHz): <-1.7 dB

• Input Sensitivity @ 8 ohms: 1.2 Vrms

• Input Sensitivity @ 4 ohms: 1.1 Vrms

• Output Circuitry: AB

• Power Requirements (1/8 power pink noise @ 4ohms): 10A

• Distortion (SMPTE-IM) Less than 0.01%

• Distortion (typical) 20 Hz-20 KHz (10 dB below rated power 1.0 kHz and below full rated power: Less than 0.01% THD

• Frequency Response: 20 Hz-20 kHz, � 0.2 dB/8 Hz-50 kHz, +0, -3 dB

• Damping Factor: greater than 500

• Input Impedance: 6 K ohms unbalanced, 12 K ohms balanced
• Input Clipping: 10 Vrms (+22dB)

• Cooling: Variable-speed fan, rear-to-front air flow

• Connectors: (each channel) Input: 3-pin XLR and 1/4 in. TRS balanced

• Output: Neutrik Speakon and touch-proof binding posts

• Amplifier Protection: Full short circuit, open circuit, thermal, ultrasonic, and protection.
  Stable into reactive or mismatched loads.
  Load Protection On/off muting, DC-fault power supply shutdown

• Dimensions: 19 in. 48.3cm) rack mounting, 3.5 in. (8.9 cm) tall (2 rack spaces), 13.25 in. (33.7 cm) deep (from front mounting rails)

• Gain: 40x (32 dB)

• Weight: 21 lbs. (9.5 kg) net
